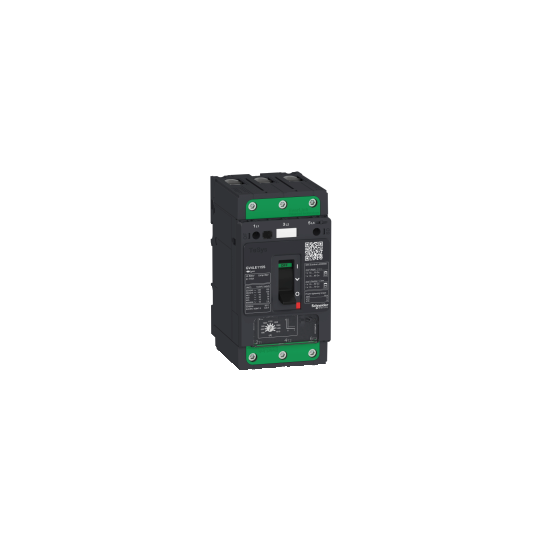

TeSys GV4 - magnetic circuit breaker - 25A 3P - with EverLink - GV4LE25N
SKU : GV4LE25N
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys GV4 - magnetic circuit breaker - 25A 3P - with EverLink - GV4LE25N
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys GV4 |
| Product or component type: | Circuit breaker |
| Device short name: | GV4L |
| Device application: | Motor protection |
| Poles description: | 3P |
| Utilisation category: | Category A |
| Trip unit technology: | MagneticElectronic |
| Protection type: | Short-circuit |
| [In] rated current: | 25 A |
| Breaking capacity: | Icu 100 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2Icu 50 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2Icu 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2Icu 15 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2Icu 8 kA at 660...690 V AC 50/60 Hz conforming to IEC 60947-2Icu 25 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service breaking capacity: | 100 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-250 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-250 kA at 440 V AC 50/60 Hz conforming to IEC 60947-225 kA at 500 V AC 50/60 Hz conforming to IEC 60947-215 kA at 525 V AC 50/60 Hz conforming to IEC 60947-22 kA at 660...690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Trip unit rating: | 150...350 A |
| Control type: | Toggle |
| [Ue] rated operational voltage: | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
|---|---|
| Motor power kW: | 7.5 kW at 660...690 V AC 50/60 Hz5.5 kW at 400...415 V AC 50/60 Hz7.5 kW at 500 V AC 50/60 Hz9 kW at 660...690 V AC 50/60 Hz11 kW at 660...690 V AC 50/60 Hz7.5 kW at 400...415 V AC 50/60 Hz9 kW at 400...415 V AC 50/60 Hz11 kW at 400...415 V AC 50/60 Hz9 kW at 500 V AC 50/60 Hz11 kW at 500 V AC 50/60 Hz15 kW at 500 V AC 50/60 Hz15 kW at 660...690 V AC 50/60 Hz18.5 kW at 660...690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage: | 8 kV conforming to IEC 60947-2 |
| [Ui] rated insulation voltage: | 800 V conforming to IEC 60947-2 |
| Mounting mode: | By clipsBy screws |
| Mounting support: | 75 mm symmetrical DIN railPlate35 mm symmetrical DIN rail |
| Suitability for isolation: | Yes conforming to IEC 60947-1 |
| Mechanical durability: | 40000 cycles |
| Electrical durability: | 40000 cycles for AC-3 at 440 V In/220000 cycles for AC-3 at 440 V In |
| Local signalling: | Green indicator for presence of auxiliary contacts |
| Number of slots: | 1 slot(s) for alarm switch for fault signalling contact, plug-in1 slot(s) for voltage release for electrical remote tripping, plug-in1 slot(s) for auxiliary switch for open/close contact, plug-in |
| Connection pitch: | 27 mm |
| Connections - terminals: | Top 1 EverLink BTR screw connectors wire size 1.5...70 mm², solidTop 1 EverLink BTR screw connectors wire size 1.5...50 mm², flexibleBottom 1 EverLink BTR screw connectors wire size 2.5...95 mm², solidBottom 1 EverLink BTR screw connectors wire size 2.5...70 mm², flexible |
| Tightening torque: | 9 N.m for 16...95 mm²5 N.m for 1.5...10 mm² |
| Wire stripping length: | 20 mm |
| Quality labels: | CE |
| Standards: | EN/IEC 60947-4-1EN/IEC 60947-2 |
| Height: | 155 mm |
| Width: | 81 mm |
| Depth: | 116 mm |
| Product weight: | 1.5 kg |
| Colour: | Grey (RAL 7016) |
| Product certifications: | IECCCCEACEU-RO MR |
|---|---|
| Tropicalisation: | 2 conforming to IEC 68-2 |
| IP degree of protection: | IP40 front face conforming to IEC 60529 |
| IK degree of protection: | IK07 conforming to IEC 62262 |
| Pollution degree: | 3 conforming to IEC 60947-1 |
| Mechanical robustness: | Vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6Vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6Shocks: 15 gn 11 ms conforming to IEC 60068-2-27 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -50...85 °C |
| Operating altitude: | 0...2000 m without derating2000...5000 m with derating |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481309631 |
|---|
