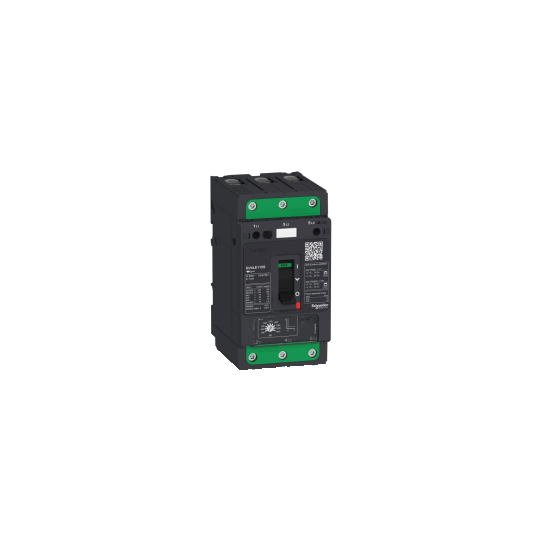

TeSys GV4 - magnetic circuit breaker - 80A 3P - with EverLink - GV4LE80B
SKU : GV4LE80B
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys GV4 - magnetic circuit breaker - 80A 3P - with EverLink - GV4LE80B
DESCRIPTION
| Range: | TeSys DecaTeSys Deca |
|---|---|
| Range of product: | TeSys GV4 |
| Device short name: | GV4L |
| Product name: | TeSys GV4TeSys Deca |
| Product or component type: | Motor circuit breaker |
| Device application: | Motor protection |
| Trip unit technology: | MagneticElectronic |
| Poles description: | 3P |
|---|---|
| Utilisation category: | Category A conforming to IEC 60947-2AC-3 conforming to IEC 60947-4-1 |
| Operating position: | Any position |
| Motor power kW: | 37 kW at 400...415 V AC 50/60 Hz45 kW at 500 V AC 50/60 Hz55 kW at 500 V AC 50/60 Hz22 kW at 400...415 V AC 50/60 Hz30 kW at 500 V AC 50/60 Hz37 kW at 660...690 V AC 50/60 Hz45 kW at 660...690 V AC 50/60 Hz55 kW at 660...690 V AC 50/60 Hz30 kW at 400...415 V AC 50/60 Hz37 kW at 500 V AC 50/60 Hz |
| Breaking capacity: | 50 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-225 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-220 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-210 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type: | Toggle |
| [In] rated current: | 80 A |
| Magnetic tripping current: | 480...1120 A |
| [Ue] rated operational voltage: | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage: | 800 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ith] conventional free air thermal current: | 115 A conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage: | 8 kV conforming to IEC 60947-2 |
| Power dissipation per pole: | 6.1 W |
| Mechanical durability: | 40000 cycles |
| Electrical durability: | 14000 cycles for AC-3 at 440 V In/27000 cycles for AC-3 at 440 V In |
| Maximum operating rate: | 25 cyc/h |
| Rated duty: | Continuous conforming to IEC 60947-4-1 |
| Direct connector: | Without |
| Connections - terminals: | EverLink BTR screw connectors (top) 1 cable(s) 1.5...70 mm² - solidEverLink BTR screw connectors (top) 1 cable(s) 1.5...50 mm² - flexibleEverLink BTR screw connectors (bottom) 1 cable(s) 2.5...95 mm² - solidEverLink BTR screw connectors (bottom) 1 cable(s) 2.5...70 mm² - flexible |
| Tightening torque: | 9 N.m for cable 16...95 mm²5 N.m for cable 1.5...10 mm² |
| Mechanical robustness: | Vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6Vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6Shocks: 15 gn 11 ms conforming to IEC 60068-2-27 |
| Height: | 155 mm |
| Width: | 81 mm |
| Depth: | 116 mm |
| Net weight: | 1.5 kg |
| Colour: | Grey (RAL 7016) |
| Suitability for isolation: | Yes conforming to IEC 60947-1 |
| Standards: | EN/IEC 60947-4-1EN/IEC 60947-2 |
|---|---|
| Product certifications: | IECCCCEACEU-RO MR |
| Climatic withstand: | conforming to IACS E10 |
| IK degree of protection: | IK07 conforming to IEC 62262 |
| Pollution degree: | 3 |
| IP degree of protection: | IP40 conforming to IEC 60529 |
| Ambient air temperature for storage: | -50...85 °C |
| Fire resistance: | 960 °C conforming to IEC 60695-2-11 |
| Operating altitude: | 5000 m |
| Ambient air temperature for operation: | -25...70 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606481309457 |
|---|
