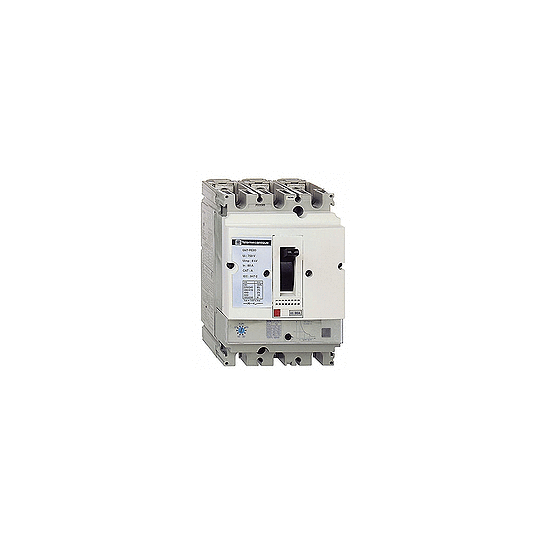

TeSys GV7 - circuit breaker - 3P - AC-3 - 48...80 A - thermal-magnetic - GV7RE80
SKU : GV7RE80
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys GV7 - circuit breaker - 3P - AC-3 - 48...80 A - thermal-magnetic - GV7RE80
DESCRIPTION
| Range: | TeSys |
|---|---|
| Range of product: | TeSys GV7 |
| Product name: | TeSys GV7 |
| Product or component type: | Circuit breaker |
| Device short name: | GV7R |
| Device application: | Motor |
| Poles description: | 3P |
| Network type: | AC |
| Utilisation category: | AC-3 conforming to IEC 60947-4-1 |
| Network frequency: | 50/60 Hz conforming to IEC 60947-4-1 |
| Breaking capacity: | 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-285 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-236 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-225 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-28 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity: | 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2100 % at 220/240 V AC 50/60 Hz conforming to IEC 60947-2100 % at 380/415 V AC 50/60 Hz conforming to IEC 60947-250 % at 500 V AC 50/60 Hz conforming to IEC 60947-250 % at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Trip unit rating: | 48...80 A |
| Trip unit technology: | Thermal-magnetic |
| Mounting mode: | By screwsBy clips |
|---|---|
| Mounting support: | Kit for fixing the switchgearRailPanel mountingFlush |
| Mounting position: | Vertical |
| Motor power kW: | 37 kW at 400...415 V AC 50/60 Hz45 kW at 500 V AC 50/60 Hz55 kW at 500 V AC 50/60 Hz55 kW at 660...690 V AC 50/60 Hz |
| Control type: | Rocker lever |
| [In] rated current: | 80 A |
| [Ue] rated operational voltage: | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage: | 750 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ith] conventional free air thermal current: | 80 A conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage: | 8 kV conforming to IEC 60947-2 |
| Power dissipation: | 5 W |
| Power dissipation per pole: | 5 W |
| Mechanical durability: | 50000 cycles |
| Electrical durability: | 30000 cycles for AC-3 at 440 V In50000 cycles for AC-3 at 440 V In/2 |
| Maximum operating rate: | 25 cyc/h |
| Rated duty: | Continuous conforming to IEC 60947-4-1 |
| Connection pitch: | 35 mm without spreaders45 mm with spreaders |
| Connections - terminals: | BarsCable with lug - external diameter: 10 mmScrewBare cable connectors 1.5...95 mm² |
| Tightening torque: | 10 N.m on screw M6 screw type 15 N.m on bare cable connectors for cable 1.5...95 mm² |
| Mechanical robustness: | Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-27Vibrations: 2.5 Gn, 0...25 Hz conforming to IEC 60068-2-6 |
| Suitability for isolation: | Yes conforming to IEC 60947-1 |
| Phase failure sensitivity: | Yes conforming to IEC 60947-4-1 § 7-2-1-5-2 |
| Height: | 161 mm |
| Width: | 105 mm |
| Depth: | 111 mm |
| Product weight: | 2.04 kg |
| Compatibility code: | GV7RE |
| Standards: | VDE 0660NF C 63-650EN/IEC 60947-4-1NF C 63-120NF C 79-130VDE 0113EN/IEC 60947-2EN/IEC 60947-1 |
|---|---|
| Product certifications: | DNVUL |
| Protective treatment: | TC |
| IP degree of protection: | IP405 conforming to IEC 60529 (with terminal shrouds) |
| Pollution degree: | 3 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -55...95 °C |
| Fire resistance: | 960 °C conforming to IEC 60695-2-1 |
| Operating altitude: | 2000 m |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope)Environmental Disclosure |
| Code EAN: | 3389110566826 |
|---|
