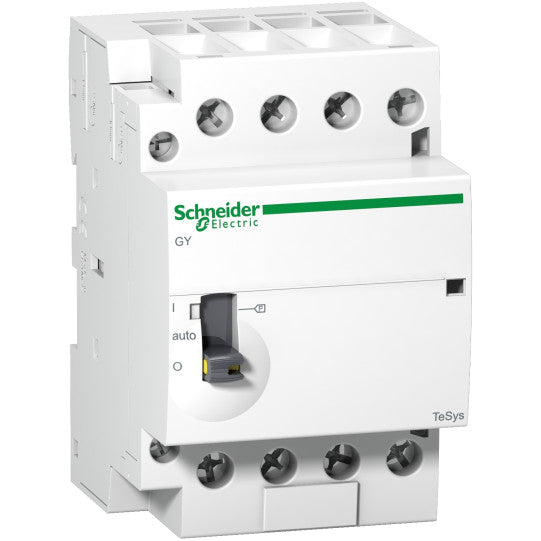

TeSys GY - modular dual tariff contactor - 63 A - 4 NO - coil 220...240 V AC - GY6340M5
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys GY |
| Product or component type: | Modular dual tariff contactor |
| Device short name: | GY63 |
| Contactor application: | LightingMotor controlHeating |
| Utilisation category: | AC-7AAC-7B |
|---|---|
| Poles description: | 4P |
| Pole contact composition: | 4 NO |
| [Ue] rated operational voltage: | |
| [Ie] rated operational current: | 63 A AC-7A25 A AC-7B |
| Operating position: | 30°/vertical |
| Control circuit type: | AC at 50 Hz |
| [Uc] control circuit voltage: | 220...240 V AC 50 Hz |
| [Uimp] rated impulse withstand voltage: | 4 kV |
| [Ith] conventional free air thermal current: | 63 A (at 50 °C) for power circuit |
| Irms rated making capacity: | 200 A at 400 V AC for power circuit conforming to IEC 61095 |
| Rated breaking capacity: | 200 A at 400 V for power circuit conforming to IEC 61095 |
| [Icw] rated short-time withstand current: | 504 A 40 °C - 10 s for power circuit157 A 40 °C - 30 s for power circuit |
| Associated fuse rating: | 63 A gL at |
| Average impedance: | 2 mOhm - Ith 63 A 50 Hz for power circuit |
| [Ui] rated insulation voltage: | 500 V conforming to IEC 61095500 V conforming to VDE 0110 |
| Electrical durability: | AC-7A: 100000 cyclesAC-7B: 100000 cycles |
| Power dissipation per pole: | 8 W |
| Control type: | Remote control |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Standards: | IEC 60947-5IEC 61095 |
| Connections - terminals: | Control circuit: screw clamp terminals 1 cable(s) 2.5 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 2.5 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 2.5 mm²flexible with cable endControl circuit: screw clamp terminals 2 cable(s) 1.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1.5 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1.5 mm²solid without cable endPower circuit: screw clamp terminals 1 cable(s) 25 mm²flexible without cable endPower circuit: screw clamp terminals 2 cable(s) 16 mm²flexible without cable endPower circuit: screw clamp terminals 1 cable(s) 16 mm²flexible with cable endPower circuit: screw clamp terminals 2 cable(s) 4 mm²flexible with cable endPower circuit: screw clamp terminals 1 cable(s) 25 mm²solid without cable endPower circuit: screw clamp terminals 2 cable(s) 6 mm²solid without cable end |
| Tightening torque: | Power circuit: 3.5 N.m - on screw clamp terminalsControl circuit: 3.5 N.m - on screw clamp terminals |
| Operating time: | 10...25 ms opening10...30 ms closing |
| Mechanical durability: | 1000000 cycles |
| Maximum operating rate: | 300 cyc/h 50 °C |
| Control circuit voltage limits: | Drop-out: 0.2...0.75 Uc at 50 Hz (at Operational: 0.85...1.1 Uc at 50 Hz (at |
| Inrush power in VA: | 53 VA 50 Hz (at 20 °C) |
| Hold-in power consumption in VA: | 6.5 VA 50 Hz (at 20 °C) |
| Heat dissipation: | 2.1 W at 50/60 Hz |
| Compatibility code: | Modular day night contactor |
| IP degree of protection: | IP40 conforming to VDE 0106 (in enclosure)IP20 conforming to VDE 0106 |
|---|---|
| Protective treatment: | TC |
| Ambient air temperature for operation: | -5...50 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Operating altitude: | |
| Mechanical robustness: | Shocks contactor open: 10 Gn for 11 msShocks contactor closed: 15 Gn for 11 msVibrations contactor open: 2 Gn, 5...300 HzVibrations contactor closed: 3 Gn, 5...300 Hz |
| Total number of 18 mm modules: | 3 |
| Height: | 85 mm |
| Width: | 54 mm |
| Depth: | 62.5 mm |
| Product weight: | 0.39 kg |
| Quantity per set: | Set of 4 |
| Colour: | White |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110643053 |
|---|
