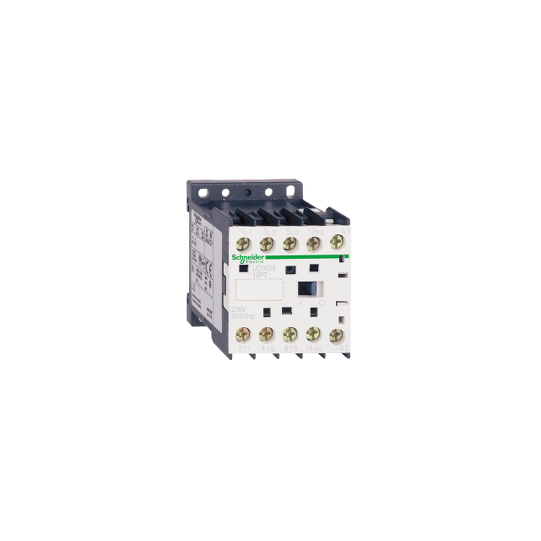

TeSys K contactor 3P 9A AC-3 <= 440V - aux 1NC - coil 230V 50Hz - LC1K0901P5
SKU : LC1K0901P5
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys K contactor 3P 9A AC-3 <= 440V - aux 1NC - coil 230V 50Hz - LC1K0901P5
DESCRIPTION
| Range of product: | TeSys K |
|---|---|
| Range: | TeSys |
| Product or component type: | Contactor |
| Product name: | TeSys K |
| Device application: | Control |
| Contactor application: | Resistive loadMotor control |
| Utilisation category: | AC-1AC-3AC-4 |
|---|---|
| Poles description: | 3P |
| Pole contact composition: | 3 NO |
| [Ue] rated operational voltage: | 690 V AC 50 Hz |
| [Ie] rated operational current: | 9 A at 20 A (at 16 A (at |
| Control circuit type: | AC at 50 Hz |
| [Uc] control circuit voltage: | 230 V AC 50 Hz |
| Motor power kW: | 2.2 kW at 220...230 V AC 50 Hz AC-34 kW at 380...415 V AC 50 Hz AC-34 kW at 440 V AC 50 Hz AC-34 kW at 480 V AC 50 Hz AC-34 kW at 500...600 V AC 50 Hz AC-34 kW at 660...690 V AC 50 Hz AC-32.2 kW at 400 V AC 50 Hz AC-4 |
| Auxiliary contact composition: | 1 NC |
| Overvoltage category: | III |
| [Ith] conventional free air thermal current: | 20 A (at 50 °C) for power circuit10 A (at 50 °C) for signalling circuit |
| Irms rated making capacity: | 110 A AC for power circuit conforming to NF C 63-110110 A AC for power circuit conforming to IEC 60947110 A AC for signalling circuit conforming to IEC 60947 |
| Rated breaking capacity: | 110 A at 220...230 V conforming to IEC 60947110 A at 380...400 V conforming to IEC 60947110 A at 415 V conforming to IEC 60947110 A at 440 V conforming to IEC 6094780 A at 500 V conforming to IEC 6094770 A at 660...690 V conforming to IEC 60947 |
| Associated fuse rating: | 25 A gG at 25 A aM for power circuit10 A gG for signalling circuit conforming to IEC 6094710 A gG for signalling circuit conforming to VDE 0660 |
| Average impedance: | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| [Ui] rated insulation voltage: | Power circuit: 690 V conforming to IEC 60947-4-1Power circuit: 600 V conforming to UL 60947-4-1Power circuit: 600 V conforming to CSA C22.2 No 60947-4-1Signalling circuit: 690 V conforming to IEC 60947-4-1Signalling circuit: 600 V conforming to UL 60947-4-1Signalling circuit: 600 V conforming to CSA C22.2 No 60947-4-1 |
| Insulation resistance: | > 10 MOhm for signalling circuit |
| Inrush power in VA: | 30 VA (at 20 °C) |
| Hold-in power consumption in VA: | 4.5 VA (at 20 °C) |
| Heat dissipation: | 1.3 W |
| Control circuit voltage limits: | Operational: 0.8...1.15 Uc (at Drop-out: 0.2...0.75 Uc (at |
| Connections - terminals: | Screw clamp terminals 1 cable(s) 1.5...4 mm²solidScrew clamp terminals 1 cable(s) 0.75...4 mm²flexible without cable endScrew clamp terminals 1 cable(s) 0.34...2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1.5...4 mm²solidScrew clamp terminals 2 cable(s) 0.75...4 mm²flexible without cable endScrew clamp terminals 2 cable(s) 0.34...1.5 mm²flexible with cable end |
| Maximum operating rate: | 3600 cyc/h |
| Auxiliary contacts type: | type instantaneous 1 NC |
| Signalling circuit frequency: | |
| Minimum switching current: | 5 mA for signalling circuit |
| Minimum switching voltage: | 17 V for signalling circuit |
| Mounting support: | RailPlate |
| Tightening torque: | 1.3 N.m - on screw clamp terminals - with screwdriver Philips No 21.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm |
| Operating time: | 10...20 ms coil de-energisation and NO opening10...20 ms coil energisation and NO closing |
| Safety reliability level: | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Non overlap distance: | 0.5 mm |
| Electrical durability: | 1.3 Mcycles 9 A AC-3 at Ue 0.18 Mcycles 20 A AC-1 at Ue |
| Mechanical robustness: | Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
| Height: | 58 mm |
| Width: | 45 mm |
| Depth: | 57 mm |
| Compatibility code: | LC1K |
| Standards: | IEC 60947-4-1EN/IEC 60947-4-1UL 60947-4-1CSA C22.2 No 60947-4-1BS 5424NF C 63-110VDE 0660 |
|---|---|
| Product certifications: | ULCSACCCEACKCLROS (Lloyds register of shipping)DNV-GLRINABV |
| IP degree of protection: | IP20 conforming to VDE 0106 |
| Protective treatment: | TC conforming to IEC 60068TC conforming to DIN 50016 |
| Ambient air temperature for storage: | -50...80 °C |
| Operating altitude: | 2000 m without derating |
| Flame retardance: | V1 conforming to UL 94Requirement 2 conforming to NF F 16-101Requirement 2 conforming to NF F 16-102 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606489602413 |
|---|
