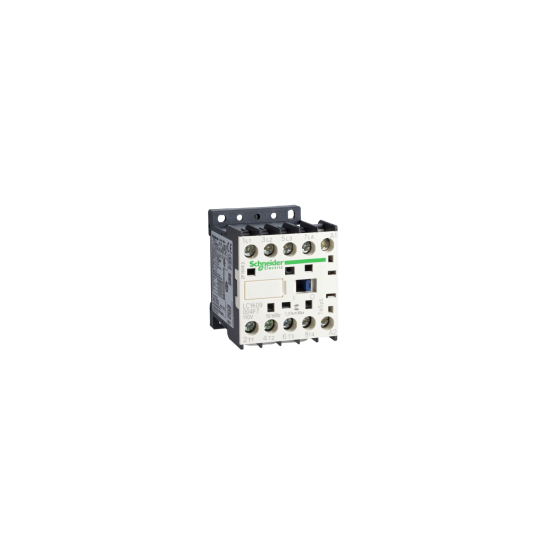

TeSys K contactor - 4P (4 NO) - AC-1 <= 440 V 20 A - 24 V AC coil - LC1K12004B7
SKU : LC1K12004B7
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys K contactor - 4P (4 NO) - AC-1 <= 440 V 20 A - 24 V AC coil - LC1K12004B7
DESCRIPTION
| Range of product: | TeSys K |
|---|---|
| Range: | TeSys |
| Product or component type: | Contactor |
| Product name: | TeSys K |
| Device short name: | LC1K |
| Device application: | Control |
| Contactor application: | Resistive load |
| Utilisation category: | AC-1 |
|---|---|
| Poles description: | 4P |
| Pole contact composition: | 4 NO |
| [Ie] rated operational current: | 20 A (at 16 A (at |
| Control circuit type: | AC at 50/60 Hz |
| [Uc] control circuit voltage: | 24 V AC 50/60 Hz |
| Overvoltage category: | III |
| [Ith] conventional free air thermal current: | 20 A (at 50 °C) for power circuit |
| Irms rated making capacity: | 144 A AC for power circuit conforming to NF C 63-110144 A AC for power circuit conforming to IEC 60947 |
| Rated breaking capacity: | 110 A at 440 V conforming to IEC 6094780 A at 500 V conforming to IEC 6094770 A at 660...690 V conforming to IEC 60947 |
| Associated fuse rating: | 25 A gG at 25 A aM for power circuit |
| Average impedance: | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| Inrush power in VA: | 30 VA (at 20 °C) |
| Hold-in power consumption in VA: | 4.5 VA (at 20 °C) |
| Heat dissipation: | 1.3 W |
| Control circuit voltage limits: | Operational: 0.8...1.15 Uc (at Drop-out: 0.2...0.75 Uc (at |
| Maximum operating rate: | 3600 cyc/h |
| Signalling circuit frequency: | |
| Operating time: | 10...20 ms coil de-energisation and NO opening10...20 ms coil energisation and NO closing |
| Safety reliability level: | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical robustness: | Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
| Compatibility code: | LC1K |
| Product certifications: | CSAUL |
|---|---|
| Protective treatment: | TC conforming to IEC 60068TC conforming to DIN 50016 |
| Operating altitude: | 2000 m without derating |
| Flame retardance: | V1 conforming to UL 94Requirement 2 conforming to NF F 16-101Requirement 2 conforming to NF F 16-102 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110788983 |
|---|
