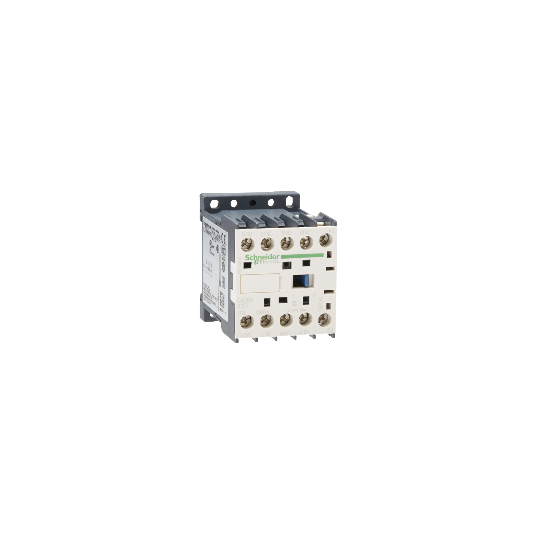

TeSys K control relay - 3 NO + 1 NC - <= 690 V - 110 V AC coil - CA2KN31F7
SKU : CA2KN31F7
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys K control relay - 3 NO + 1 NC - <= 690 V - 110 V AC coil - CA2KN31F7
DESCRIPTION
| Range of product: | TeSys K control relay |
|---|---|
| Range: | TeSys |
| Product name: | TeSys CAK |
| Product or component type: | Control relay |
| Device short name: | CA2K |
| Contactor application: | Control circuit |
| Utilisation category: | AC-15DC-13 |
| Pole contact composition: | 3 NO + 1 NC |
| [Ue] rated operational voltage: | |
| Control circuit type: | AC at 50/60 Hz |
| [Uc] control circuit voltage: | 110 V AC 50/60 Hz |
| [Ith] conventional free air thermal current: | 10 A (at 50 °C) |
|---|---|
| Irms rated making capacity: | 110 A conforming to IEC 60947 |
| Associated fuse rating: | 10 A gG conforming to IEC 6094710 A gG conforming to VDE 0660 |
| [Ui] rated insulation voltage: | 690 V conforming to IEC 60947750 V conforming to VDE 0110 group C690 V conforming to BS 5424600 V conforming to CSA C22.2 No 14 |
| Mounting support: | RailPlate |
| Connections - terminals: | Screw clamp terminals 1 cable(s) 1.5...4 mm²solidScrew clamp terminals 2 cable(s) 1.5...4 mm²solidScrew clamp terminals 1 cable(s) 0.75...4 mm²flexible with cable endScrew clamp terminals 2 cable(s) 0.75...4 mm²flexible without cable endScrew clamp terminals 1 cable(s) 0.34...1.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 0.34...1.5 mm²flexible without cable end |
| Tightening torque: | 1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm1.3 N.m - on screw clamp terminals - with screwdriver Philips No 26 mm |
| Control circuit voltage limits: | Drop-out: 0.2...0.75 Uc (at Operational: 0.8...1.15 Uc (at |
| Operating time: | 10...20 ms coil de-energisation and NO opening10...20 ms coil energisation and NO closing15...25 ms coil de-energisation and NC closing5...15 ms coil energisation and NC opening |
| Mechanical durability: | 10 Mcycles |
| Maximum operating rate: | 10000 cyc/h |
| Immunity to microbreaks: | 2 ms |
| Inrush power in VA: | 30 VA (at 20 °C) |
| Hold-in power consumption in VA: | 4.5 VA (at 20 °C) |
| Heat dissipation: | 1.3 W |
| Minimum switching voltage: | 17 V |
| Minimum switching current: | 5 mA |
| Non overlap distance: | 0.5 mm |
| Insulation resistance: | > 10 MOhm |
| Height: | 58 mm |
| Width: | 45 mm |
| Depth: | 57 mm |
| Product weight: | 0.18 kg |
| Compatibility code: | CA2K |
| Standards: | BS 5424IEC 60947NF C 63-140VDE 0660 |
|---|---|
| Product certifications: | ULCSA |
| IP degree of protection: | IP2x |
| Protective treatment: | TC conforming to IEC 60068 |
| Ambient air temperature for operation: | -25...50 °C |
| Ambient air temperature for storage: | -50...80 °C |
| Operating altitude: | 2000 m without derating |
| Flame retardance: | V1 conforming to UL 94Requirement 2 conforming to NF F 16-101Requirement 2 conforming to NF F 16-102 |
| Mechanical robustness: | Vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6Shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27Shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110428384 |
|---|
