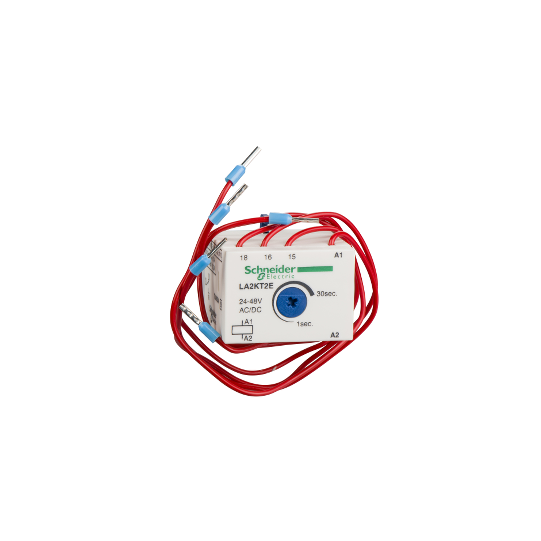

TeSys K -Time delay auxiliary contact block - 1 C/O - 24...48 V - 1…30s - LA2KT2E
SKU : LA2KT2E
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys K -Time delay auxiliary contact block - 1 C/O - 24...48 V - 1…30s - LA2KT2E
DESCRIPTION
| Range: | TeSys |
|---|---|
| Range of product: | TeSys K control relayTeSys K |
| Product name: | TeSys K |
| Product or component type: | Time delay auxiliary contact block |
| Device short name: | LA1 |
| Range compatibility: | TeSys K LC1KTeSys K CA2KTeSys K CA3KTeSys K CA4K |
| Mounting location: | Front |
| Pole contact composition: | 1 C/O |
| Auxiliary contacts operation: | Time delay |
| Timer type: | On delay |
| Time delay range: | 1...30 s |
| [Ue] rated operational voltage: | 24...48 V AC/DC for control circuit240 V AC for signalling circuit |
| Rated operational voltage limits: | 0.85...1.1 Uc |
| [Ith] conventional free air thermal current: | 2 A for signalling circuit |
| Standards: | EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1 |
| Reset time: | 1.5 s during time delay0.5 s after time delay |
|---|---|
| Insulation resistance: | > 10 MOhm |
| Connections - terminals: | Slip-on terminals |
| Shielding continuity terminal: | Without |
| Height: | 27 mm |
| Width: | 38 mm |
| Depth: | 38 mm |
| Product weight: | 0.04 kg |
| Compatibility code: | LA1 |
| Environmental characteristic: | Normal environment |
|---|---|
| IP degree of protection: | IP20 conforming to IEC 60529 |
| Protective treatment: | TC conforming to IEC 60068 |
| Ambient air temperature for operation: | -10...60 °C |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3389110230048 |
|---|
