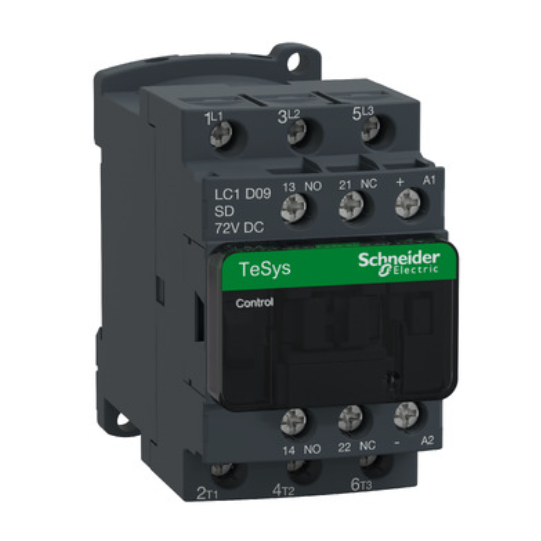

TeSys LC1D - contacteur - 3P - AC-3 440V - 9A - bobine 72Vcc - LC1D09SD
SKU : LC1D09SD
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys LC1D - contacteur - 3P - AC-3 440V - 9A - bobine 72Vcc - LC1D09SD
DESCRIPTION
| Range of product: | TeSys D |
|---|---|
| Range: | TeSys |
| Product name: | TeSys D |
| Product or component type: | Contactor |
| Device short name: | LC1D |
| Contactor application: | Motor controlResistive load |
| Utilisation category: | AC-4AC-3AC-1 |
| Poles description: | 3P |
| Pole contact composition: | 3 NO |
| [Ue] rated operational voltage: | |
| [Ie] rated operational current: | 25 A (9 A ( |
| Motor power kW: | 2.2 kW at 400 V AC 50/60 Hz AC-42.2 kW at 220...230 V AC 50/60 Hz AC-34 kW at 380...400 V AC 50/60 Hz AC-35.5 kW at 500 V AC 50/60 Hz AC-35.5 kW at 660...690 V AC 50/60 Hz AC-34 kW at 415...440 V AC 50/60 Hz AC-3 |
| Motor power hp: | 0.5 hp at 115 V AC 50/60 Hz for 1 phase motors1 hp at 230/240 V AC 50/60 Hz for 1 phase motors2 hp at 200/208 V AC 50/60 Hz for 3 phases motors2 hp at 230/240 V AC 50/60 Hz for 3 phases motors5 hp at 460/480 V AC 50/60 Hz for 3 phases motors7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors |
| Control circuit type: | DC standard |
| [Uc] control circuit voltage: | 72 V DC |
| Auxiliary contact composition: | 1 NO + 1 NC |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947 |
| Overvoltage category: | III |
| [Ith] conventional free air thermal current: | 25 A at 10 A at |
| Irms rated making capacity: | 250 A at 440 V for power circuit conforming to IEC 60947140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Rated breaking capacity: | 250 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current: | 105 A 210 A 30 A 61 A 100 A 1 s signalling circuit120 A 500 ms signalling circuit140 A 100 ms signalling circuit |
| Associated fuse rating: | 20 A gG at 25 A gG at 10 A gG for signalling circuit conforming to IEC 60947-5-1 |
| Average impedance: | 2.5 mOhm at 50 Hz - Ith 25 A for power circuit |
| [Ui] rated insulation voltage: | 600 V for power circuit certifications CSA600 V for power circuit certifications UL690 V for power circuit conforming to IEC 60947-4-1690 V for signalling circuit conforming to IEC 60947-1600 V for signalling circuit certifications CSA600 V for signalling circuit certifications UL |
| Electrical durability: | 0.6 Mcycles 25 A AC-1 at Ue 2 Mcycles 9 A AC-3 at Ue |
| Power dissipation per pole: | 0.2 W AC-31.56 W AC-1 |
| Protective cover: | With |
| Mounting support: | PlateRail |
| Standards: | CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508 |
| Product certifications: | GLCCCRINADNVLROSULCSAGOSTBV |
| Connections - terminals: | Control circuit |
| Tightening torque: | Power circuit |
| Operating time: | 53.55...72.45 ms closing16...24 ms opening |
| Safety reliability level: | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability: | 30 Mcycles |
| Operating rate: | 3600 cyc/h at |
| Coil technology: | Built-in bidirectional peak limiting diode suppressor |
|---|---|
| Control circuit voltage limits: | 0.1...0.25 Uc drop-out at 60 °C, DC0.7...1.25 Uc operational at 60 °C, DC |
| Time constant: | 28 ms |
| Inrush power in W: | 5.4 W at 20 °C |
| Hold-in power consumption in W: | 5.4 W at 20 °C |
| Auxiliary contacts type: | Type mechanically linked (1 NO + 1 NC) conforming to IEC 60947-5-1Type mirror contact (1 NC) conforming to IEC 60947-4-1 |
| Signalling circuit frequency: | 25...400 Hz |
| Minimum switching current: | 5 mA for signalling circuit |
| Minimum switching voltage: | 17 V for signalling circuit |
| Non-overlap time: | 1.5 ms on energisation between NC and NO contact1.5 ms on de-energisation between NC and NO contact |
| Insulation resistance: | > 10 MOhm for signalling circuit |
| IP degree of protection: | IP2x front face conforming to IEC 60529 |
|---|---|
| Protective treatment: | TH conforming to IEC 60068-2-30 |
| Pollution degree: | 3 |
| Ambient air temperature for operation: | -20...60 °C |
| Ambient air temperature for storage: | -60...80 °C |
| Permissible ambient air temperature around the device: | -40...70 °C at Uc |
| Operating altitude: | 3000 m without derating in temperature |
| Fire resistance: | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance: | V1 conforming to UL 94 |
| Mechanical robustness: | Vibrations contactor open 2 Gn, 5...300 HzVibrations contactor closed 4 Gn, 5...300 HzShocks contactor open 10 Gn for 11 msShocks contactor closed 15 Gn for 11 ms |
| Height: | 77 mm |
| Width: | 45 mm |
| Depth: | 95 mm |
| Product weight: | 0.48 kg |
| Warranty period: | 18 months |
| Sustainable offer status: | Green Premium productRoHS (date code: YYWW) |
| Code EAN: | 3389110353648 |
|---|---|
| Contexte: |
Contactor
Control Relay Relays with 5 poles as standard with 10A thermally rated contacts suitable for AC or DC control voltages. In addition a DC control circuit version with low consumption and built in suppression is available.
|
