TeSys LE - enclosed DOL starter - 12...16 A - 220 V AC coil - LE1M35M722
SKU : LE1M35M722
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation

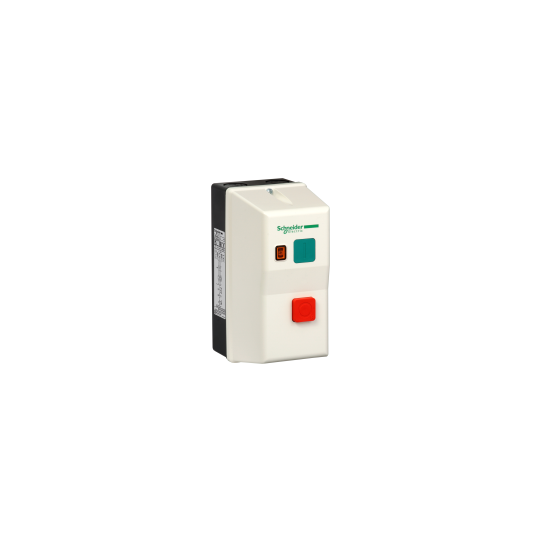

TeSys LE - enclosed DOL starter - 12...16 A - 220 V AC coil - LE1M35M722
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys LE |
| Device short name: | LE1M |
| Product or component type: | Enclosed DOL starter |
| Device application: | Standard |
| Utilisation category: | AC-3 |
| Device composition: | ContactorEarth terminalNeutral terminalThermal overload relay |
| Thermal protection adjustment range: | 12...16 A |
| Motor power kW: | 4 kW at 240 V AC 50/60 Hz7.5 kW at 415 V AC 50/60 Hz7.5 kW at 380/400 V AC 50/60 Hz3.7 kW at 220/230 V AC 50/60 Hz |
| [Uc] control circuit voltage: | 220 V AC 50/60 Hz |
| Control type: | Push-button start green IPush-button stop/reset red O |
| Local signalling: | Operating: LED (yellow) |
|---|---|
| Cable entry number: | 2 ISO20 top2 ISO25 top2 Pg 13 top2 Pg 21 top2 ISO20 bottom2 ISO25 bottom2 Pg 13 bottom2 Pg 21 bottom2 Pg 16 top2 Pg 16 bottom |
| Width: | 78 mm |
| Height: | 160 mm |
| Depth: | 108 mm |
| Net weight: | 0.6 kg |
| Compatibility code: | LE1M |
| Material: | ABS (acrylonitrile butadiene-styrene) |
|---|---|
| IP degree of protection: | IP65 conforming to IEC 60529 |
| Standards: | IEC 60947-4-1 |
| Ambient air temperature for operation: | -5...40 °C |
| Environmental characteristic: | Standard environment |
| Product certifications: | UKCA |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389110765694 |
|---|---|
| Substitution_texte: | Obsolete product |
