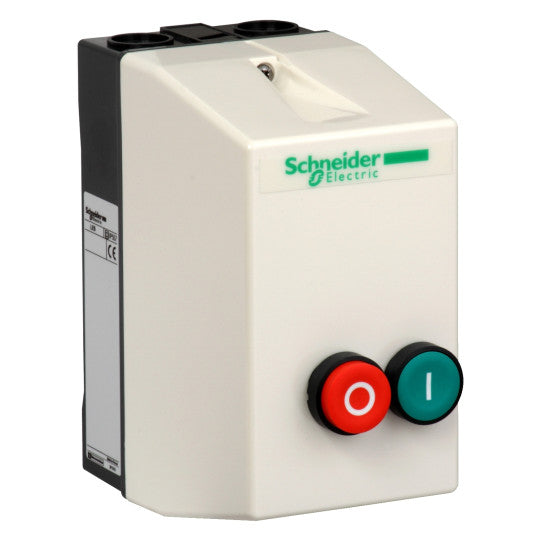

TeSys LE - enclosed DOL starter - 12 A - 230 V AC coil - LE1D12P7
SKU : LE1D12P7
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys LE - enclosed DOL starter - 12 A - 230 V AC coil - LE1D12P7
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys LE |
| Device short name: | LE1D |
| Product or component type: | Enclosed DOL starter |
| Device application: | Standard |
| Utilisation category: | AC-3 |
| Device composition: | Thermal overload relay ordered separatelyContactor |
| Control type: | Push-button start green IPush-button stop/reset red O |
| [Ie] rated operational current: | 12 A AC-3 |
|---|---|
| Motor power kW: | 3 kW at 220/230 V AC 50/60 Hz7.5 kW at 500 V AC 50/60 Hz7.5 kW at 660/690 V AC 50/60 Hz5.5 kW at 380/400 V AC 50/60 Hz5.5 kW at 415 V AC 50/60 Hz5.5 kW at 440 V AC 50/60 Hz |
| [Ithe] conventional enclosed thermal current: | 12 A |
| [Uc] control circuit voltage: | 230 V AC 50/60 Hz |
| Cable entry number: | 2 ISO20 top2 ISO20 bottom2 Pg 13 bottom2 Pg 16 bottom |
| Width: | 88 mm |
| Height: | 166 mm |
| Depth: | 128.5 mm |
| Product weight: | 0.92 kg |
| Compatibility code: | LE1D |
| Material: | Polycarbonate |
|---|---|
| IP degree of protection: | IP65 conforming to IEC 60529 |
| IK degree of protection: | IK07 conforming to IEC 60529 |
| Standards: | IEC 60947-4-1 |
| Ambient air temperature for operation: | -5...40 °C |
| Environmental characteristic: | Standard environment |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110541359 |
|---|
