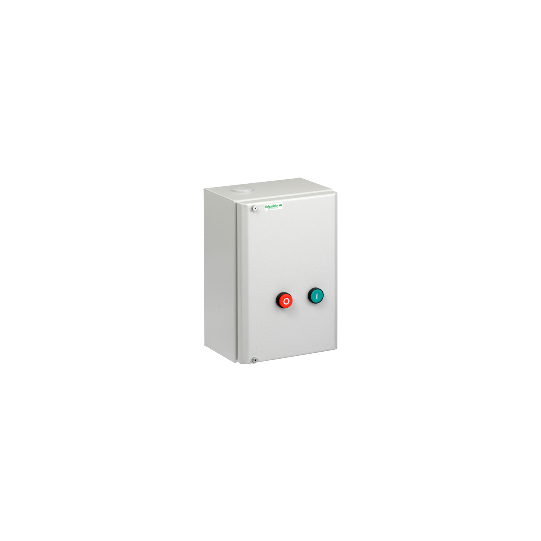

TeSys LE - enclosed DOL starter - 65 A - 380 V AC coil - LE1D65AQ7
SKU : LE1D65AQ7
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys LE - enclosed DOL starter - 65 A - 380 V AC coil - LE1D65AQ7
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys LE |
| Device short name: | LE1D |
| Product or component type: | Enclosed DOL starter |
| Device application: | Standard |
| Utilisation category: | AC-3 |
| Device composition: | Thermal overload relay ordered separatelyContactor |
| Control type: | Push-button start green IPush-button stop/reset red O |
| [Ie] rated operational current: | 65 A AC-3 |
|---|---|
| Motor power kW: | 30 kW at 380/400 V AC 50/60 Hz37 kW at 415 V AC 50/60 Hz37 kW at 440 V AC 50/60 Hz37 kW at 500 V AC 50/60 Hz37 kW at 660/690 V AC 50/60 Hz18.5 kW at 220/230 V AC 50/60 Hz |
| [Ithe] conventional enclosed thermal current: | 65 A |
| [Uc] control circuit voltage: | 380 V AC 50/60 Hz |
| Cable entry number: | 1 ISO32 top3 1 ISO20 + 2 ISO32 bottom |
| Width: | 200 mm |
| Height: | 300 mm |
| Depth: | 158.4 mm |
| Product weight: | 4.85 kg |
| Compatibility code: | LE1D |
| Material: | Sheet steel |
|---|---|
| IP degree of protection: | IP65 conforming to IEC 60529 |
| IK degree of protection: | IK09 conforming to IEC 60529 |
| Standards: | IEC 60947-4-1 |
| Ambient air temperature for operation: | -5...40 °C |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3606480452802 |
|---|
