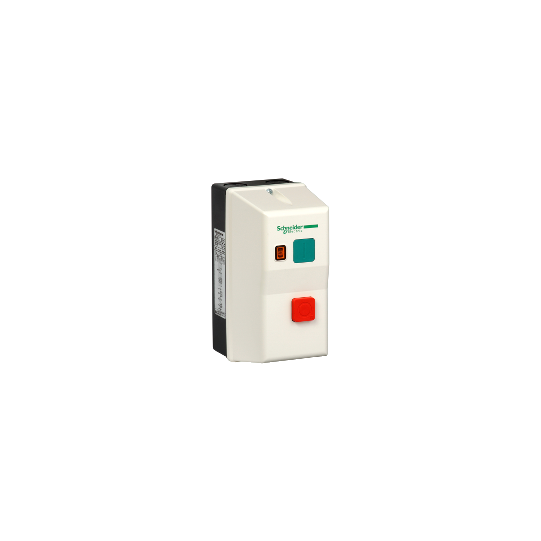

TeSys LE - enclosed DOL starter - 8...11.5 A - 400 V AC coil - LE1M35V716
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys LE |
| Device short name: | LE1M |
| Product or component type: | Enclosed DOL starter |
| Device application: | Standard |
| Utilisation category: | AC-3 |
| Device composition: | ContactorEarth terminalNeutral terminalThermal overload relay |
| Thermal protection adjustment range: | 8...11.5 A |
| Motor power kW: | 4 kW at 415 V AC 50/60 Hz2.2 kW at 240 V AC 50/60 Hz4 kW at 380/400 V AC 50/60 Hz2.2 kW at 220/230 V AC 50/60 Hz |
| [Uc] control circuit voltage: | 400 V AC 50/60 Hz |
| Control type: | Push-button start green IPush-button stop/reset red O |
| Local signalling: | Operating: LED (yellow) |
|---|---|
| Cable entry number: | 2 ISO20 top2 ISO25 top2 Pg 13 top2 Pg 21 top2 ISO20 bottom2 ISO25 bottom2 Pg 13 bottom2 Pg 21 bottom2 Pg 16 top2 Pg 16 bottom |
| Width: | 78 mm |
| Height: | 160 mm |
| Depth: | 108 mm |
| Product weight: | 0.6 kg |
| Compatibility code: | LE1M |
| Material: | ABS (acrylonitrile butadiene-styrene) |
|---|---|
| IP degree of protection: | IP65 conforming to IEC 60529 |
| Standards: | IEC 60947-4-1 |
| Ambient air temperature for operation: | -5...40 °C |
| Environmental characteristic: | Standard environment |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3389110963199 |
|---|
