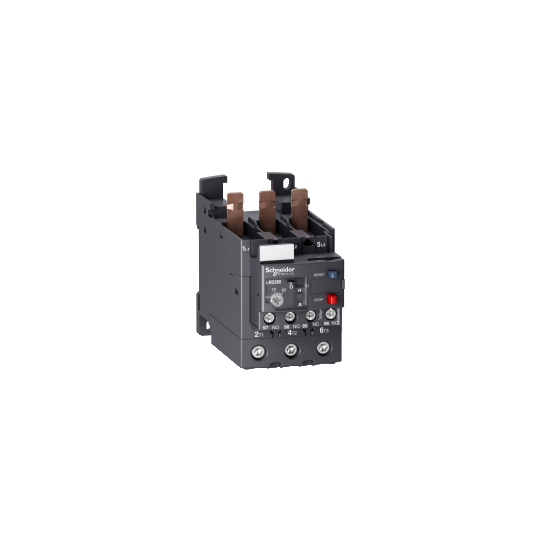

TeSys LRD differential thermal overload relay 62-80A class10A EverLink - LRD380
SKU : LRD380
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys LRD differential thermal overload relay 62-80A class10A EverLink - LRD380
DESCRIPTION
| Range: | TeSysTeSys Deca |
|---|---|
| Product name: | TeSys LRDTeSys Deca |
| Product or component type: | Differential thermal overload relay |
| Device short name: | LRD |
| Relay application: | Motor protection |
| Product compatibility: | LC1D80A |
| Network type: | ACDC |
| Thermal overload class: | Class 10A conforming to IEC 60947-4-1 |
| Thermal protection adjustment range: | 62...80 A |
| [Ui] rated insulation voltage: | Power circuit: 690 V conforming to IEC 60947-4-1Power circuit: 600 V conforming to UL 60947-4-1Power circuit: 600 V conforming to CSA C22.2 No 14 |
| Network frequency: | 0...400 Hz |
|---|---|
| Mounting support: | Plate, with terminal block LAD96560 on topRail, with terminal block LAD96560 on topDirect mounting under contactor |
| Tripping threshold: | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Auxiliary contact composition: | 1 NO + 1 NC |
| [Ith] conventional free air thermal current: | 5 A for signalling circuit |
| Permissible current: | 0.95 A at 380 V AC-15 for signalling circuit0.06 A at 440 V DC-13 for signalling circuit |
| [Ue] rated operational voltage: | 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Associated fuse rating: | 4 A gG for signalling circuit4 A BS for signalling circuit |
| [Uimp] rated impulse withstand voltage: | 6 kV |
| Power dissipation per pole: | 4.8 W |
| Phase failure sensitivity: | Tripping current 130 % of Ir on two phase, the last one at 0 |
| Control type: | Red push-button: stopBlue push-button: reset |
| Temperature compensation: | -20...60 °C |
| Connections - terminals: | Control circuit: screw clamp terminals 2 cable(s) 1...2.5 mm² flexible with cable endPower circuit: EverLink BTR screw connectors 1 cable(s) 1...35 mm² flexible with cable endPower circuit: EverLink BTR screw connectors 1 cable(s) 1...35 mm² solidControl circuit: screw clamp terminals 2 cable(s) 1...2.5 mm² solidControl circuit: screw clamp terminals 2 cable(s) 1...2.5 mm² flexiblePower circuit: EverLink BTR screw connectors 1 cable(s) 1...35 mm² flexiblePower circuit: direct terminal link on top |
| Tightening torque: | Control circuit: 1.7 N.m - on screw clamp terminalsPower circuit: 5 N.m - on EverLink BTR screw connectors - cable 25 mm²Power circuit: 8 N.m - on EverLink BTR screw connectors - cable 35 mm² |
| Height: | 70 mm |
| Width: | 55 mm |
| Depth: | 123 mm |
| Product weight: | 0.375 kg |
| Colour: | Grey (SE GREY 6) |
| Compatibility code: | LRD |
| Protective treatment: | TH conforming to IEC 60068 |
|---|---|
| IP degree of protection: | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation: | -20...60 °C without derating conforming to IEC 60947-4-1 |
| Ambient air temperature for storage: | -60...70 °C |
| Flame retardance: | V1 conforming to UL 94 |
| Mechanical robustness: | Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7Vibrations: 3 Gn conforming to IEC 60068-2-6 |
| Dielectric strength: | 1.89 kV at 50 Hz conforming to IEC 60947-1 |
| Standards: | EN/IEC 60947-4-1EN/IEC 60947-5-1UL 60947-4-1UL 60947-5-1CSA C22.2 No 60947-4-1CSA C22.2 No 60947-5-1GB/T 14048.4GB/T 14048.5 |
| Product certifications: | IECULCSACCCEACDNV-GLRMRSEU-RO MRUKCA |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481311986 |
|---|
