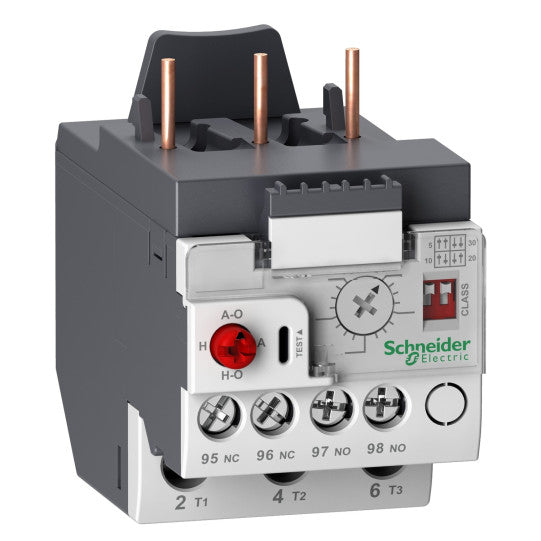

TeSys LRD - electronic thermal overload relay - 3P - 1.6...8 A - LR9D08
SKU : LR9D08
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys LRD - electronic thermal overload relay - 3P - 1.6...8 A - LR9D08
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys LRD |
| Device short name: | LR9D |
| Product or component type: | Electronic thermal overload relay |
| Relay application: | Motor protection |
| Product compatibility: | LC1D12LC1D32LC1D38LC1D09LC1D25LC1D18 |
| Thermal overload class: | Class 5...30 |
| Thermal protection adjustment range: | 1.6...8 A |
| Power consumption in W: | 300 mW |
| Mounting support: | Under contactorPlate, with specific accessoriesRail, with specific accessories |
| [Ue] rated operational voltage: | 690 V for power circuit660 V for signalling circuit |
|---|---|
| [Ui] rated insulation voltage: | Power circuit: 1000 VSignalling circuit: 690 V |
| Tripping threshold: | 1.25 In conforming to IEC 60947-4-1 |
| Control type: | Red push-button: stop and manual resetWhite 2 microswitches: adjustable trip classRed knob: automatic resetWhite dial: full-load current adjustment |
| Time range: | 1.5...4 min - automatic reset time |
| [Ith] conventional free air thermal current: | 5 A for signalling circuit |
| Associated fuse rating: | 5 A gG for signalling circuit5 A BS for signalling circuit |
| [Uimp] rated impulse withstand voltage: | 6 kV |
| Phase failure sensitivity: | Phase difference > 40% 3 s conforming to IEC 60947-4-1 |
| Electromagnetic compatibility: | Surge withstand: 2 kV common mode conforming to IEC 61000-4-5Resistance to electrostatic discharge: 8 kV conforming to IEC 61000-4-2Immunity to radiated radio-electrical interference: 10 V/m conforming to IEC 61000-4-3Immunity to fast transients: 2 kV conforming to IEC 61000-4-4 |
| Connections - terminals: | Control circuit: screw clamp terminals 1 cable 2.5 mm² - cable stiffness: solid or flexible - without cable endPower circuit: screw clamp terminals 1 cable 16 mm² - cable stiffness: solid or flexible - without cable end |
| Tightening torque: | Control circuit: 0.8 N.m on screw clamp terminalsPower circuit: 3.1 N.m on screw clamp terminals |
| Height: | 72.5 mm |
| Width: | 45 mm |
| Depth: | 79.9 mm |
| Product weight: | 0.18 kg |
| Standards: | EN/IEC 60947-4-1EN/IEC 60947-5-1UL 60947-4-1UL 60947-5-1CSA C22.2 No 60947-4-1CSA C22.2 No 60947-5-1GB/T 14048.4GB/T 14048.5 |
|---|---|
| Product certifications: | IECEE CB SchemeULCSACCC |
| IP degree of protection: | IP20 front face conforming to IEC 60529 |
| Ambient air temperature for operation: | -25...70 °C conforming to IEC 60255-8 |
| Ambient air temperature for storage: | -55...80 °C |
| Operating altitude: | 2000 m without derating |
| Mechanical robustness: | Vibrations 10...150 Hz: 6 Gn conforming to IEC 60068-2-6Shocks 11 ms: 15 gn conforming to IEC 60068-2-7 |
| Dielectric strength: | 6 kV 50 Hz conforming to IEC 60255-5 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606485420943 |
|---|
