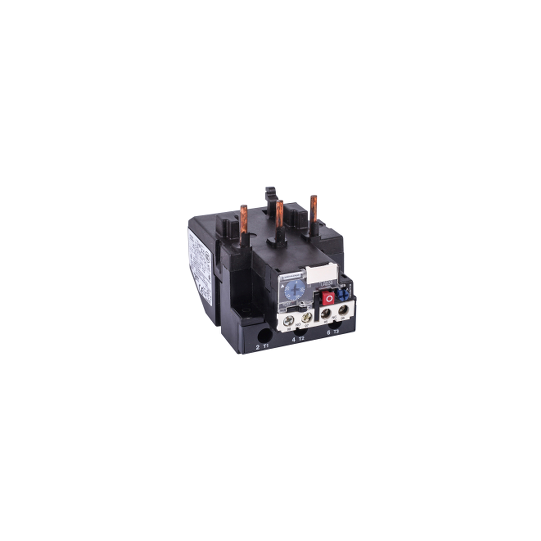

TeSys LRD thermal overload relays - 37...50 A - class 10A - LRD3357
SKU : LRD3357
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys LRD thermal overload relays - 37...50 A - class 10A - LRD3357
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys LRD |
| Product or component type: | Differential thermal overload relay |
| Device short name: | LRD |
| Relay application: | Motor protection |
| Product compatibility: | LC1D95LC1D80 |
| Network type: | DCAC |
| Thermal overload class: | Class 10A conforming to IEC 60947-4-1 |
| Thermal protection adjustment range: | 37...50 A |
| [Ui] rated insulation voltage: | Power circuit: 1000 V conforming to IEC 60947-4-1Power circuit: 600 V conforming to CSAPower circuit: 600 V conforming to UL |
| Network frequency: | 0...400 Hz |
|---|---|
| Mounting support: | Plate, with specific accessoriesRail, with specific accessoriesUnder contactor |
| Tripping threshold: | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Auxiliary contact composition: | 1 NO + 1 NC |
| [Ith] conventional free air thermal current: | 5 A for signalling circuit |
| Permissible current: | 0.72 A at 500 V AC-15 for signalling circuit0.06 A at 440 V DC-13 for signalling circuit |
| [Ue] rated operational voltage: | 1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Associated fuse rating: | 4 A gG for signalling circuit4 A BS for signalling circuit |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947-1 |
| Phase failure sensitivity: | Tripping current 130 % of Ir on two phase, the last one at 0 |
| Control type: | Red push-button: stopBlue push-button: reset |
| Temperature compensation: | -20...60 °C |
| Connections - terminals: | Power circuit: screw clamp terminals 1 cable(s) 4...35 mm² flexible without cable endPower circuit: screw clamp terminals 1 cable(s) 4...35 mm² flexible with cable endPower circuit: screw clamp terminals 1 cable(s) 4...35 mm² solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1...2.5 mm² flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1...2.5 mm² flexible with cable endControl circuit: screw clamp terminals 2 cable(s) 1...2.5 mm² solid without cable end |
| Tightening torque: | Control circuit: 1.7 N.m - on screw clamp terminalsPower circuit: 9 N.m - on screw clamp terminals |
| Height: | 81 mm |
| Width: | 70 mm |
| Depth: | 115 mm |
| Product weight: | 0.51 kg |
| Compatibility code: | LRD |
| Protective treatment: | TH conforming to IEC 60068 |
|---|---|
| IP degree of protection: | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation: | -20...60 °C without derating conforming to IEC 60947-4-1 |
| Ambient air temperature for storage: | -60...70 °C |
| Flame retardance: | V1 conforming to UL 94 |
| Mechanical robustness: | Vibrations: 6 Gn conforming to IEC 60068-2-6Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 |
| Dielectric strength: | 2.2 kV at 50 Hz conforming to IEC 60947-1 |
| Standards: | EN/IEC 60947-4-1EN/IEC 60947-5-1UL 60947-4-1UL 60947-5-1CSA C22.2 No 60947-4-1CSA C22.2 No 60947-5-1GB/T 14048.4GB/T 14048.5EN 50495 |
| Product certifications: | IECULCSACCCEACATEX INERISUKCA |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110519952 |
|---|---|
| Substitution_texte: | Produit obsolète |
