TeSys LRF - electronic thermal overload relay - 90...150 A - class 10 - LR9F5369
SKU : LR9F5369
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation

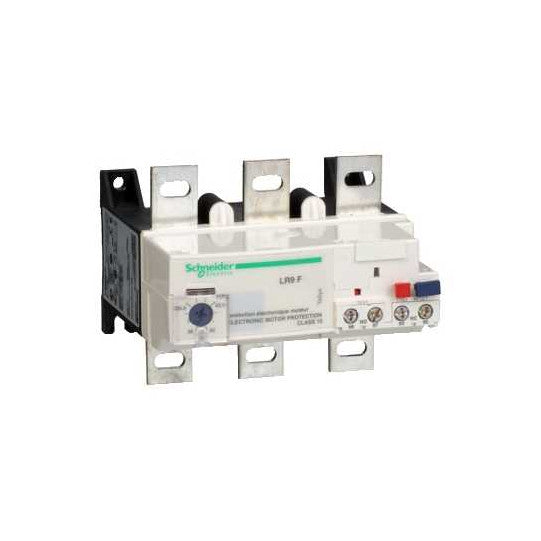

TeSys LRF - electronic thermal overload relay - 90...150 A - class 10 - LR9F5369
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys LRF |
| Device short name: | LR9F |
| Product or component type: | Electronic thermal overload relay |
| Relay application: | Motor protection |
| Product compatibility: | LC1F115...LC1F185 |
| Network type: | AC |
| Thermal overload class: | Class 10 conforming to IEC 60947-4 |
| Thermal protection adjustment range: | 90...150 A |
| Network frequency: | 50/60 Hz |
|---|---|
| Mounting support: | Direct on contactorPlate |
| Tripping threshold: | 1.12 +/- 0.06 In tripping conforming to IEC 60947-4-1 |
| Surge withstand: | 4 kV conforming to IEC 61000-4-5 |
| Contacts type and composition: | 1 NO + 1 NC |
| [Ith] conventional free air thermal current: | 5 A for control circuit |
| Rated power in W: | 100 VA at 24 V AC100 W at 24 V DC100 W at 48 V DC200 VA at 48 V AC25 W at 440 V DC400 VA at 110 V AC45 W at 220 V DC50 W at 110 V DC600 VA at 220 V AC600 VA at 380 V AC600 VA at 600 V AC |
| [Ue] rated operational voltage: | 1000 V AC 50/60 Hz for power circuit conforming to VDE 0110 group C |
| [Ui] rated insulation voltage: | Power circuit: 1000 V AC conforming to IEC 60947-4 |
| [Uimp] rated impulse withstand voltage: | 8 kV conforming to IEC 60947-1 |
| Phase failure sensitivity: | Tripping in 4 s +/- 20 % conforming to IEC 60947-4-1 |
| Reset: | Manual reset on front relay |
| Control type: | Dial white full-load current adjustmentTest button redPush-button red resetPush-button stop |
| Local signalling: | Trip indicator |
| Temperature compensation: | -20...70 °C |
| Current consumption: | |
| Switching capacity in mA: | 0...150 mA |
| Maximum voltage drop: | |
| Connections - terminals: | Control circuit: screw clamp terminals 1 cable 0.75...2.5 mm² - cable stiffness: flexible - with cable endControl circuit: screw clamp terminals 1 cable 0.75...2.5 mm² - cable stiffness: solidControl circuit: screw clamp terminals 1 cable 0.75...4 mm² - cable stiffness: flexible - without cable endControl circuit: screw clamp terminals 2 cable 1...1.5 mm² - cable stiffness: flexible - with cable endControl circuit: screw clamp terminals 2 cable 1...2.5 mm² - cable stiffness: flexible - without cable endControl circuit: screw clamp terminals 2 cable 1 mm² - cable stiffness: solidPower circuit: lugs-ring terminals M8 |
| Tightening torque: | Control circuit: 1.2 N.m on screw clamp terminalsPower circuit: 18 N.m on screw clamp terminals |
| Height: | 96 mm |
| Width: | 115 mm |
| Depth: | 123.5 mm |
| Product weight: | 0.885 kg |
| Compatibility code: | LR9F |
| Standards: | VDE 0660IEC 60255-17IEC 60947-4-1IEC 60255-8EN 60947-4-1 |
|---|---|
| Product certifications: | ULCSAUKCA |
| Protective treatment: | TH |
| IP degree of protection: | IP20 conforming to IEC 60529IP20 conforming to VDE 0106 |
| Ambient air temperature for operation: | -20...55 °C conforming to IEC 60255-8 |
| Ambient air temperature for storage: | -40...85 °C |
| Operating altitude: | |
| Fire resistance: | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness: | Shocks: 13 Gn for 11 ms conforming to IEC 60068-2-7Vibrations 5...300 Hz: 2 Gn conforming to IEC 60068-2-6 |
| Dielectric strength: | 6 kV 50 Hz conforming to IEC 255-5 |
| Electromagnetic compatibility: | Resistance to electrostatic discharge: 6 kV in indirect mode conforming to IEC 61000-4-2Resistance to electrostatic discharge: 8 kV in air conforming to IEC 61000-4-2Radiated radio-frequency electromagnetic field immunity test: 10 V/m conforming to IEC 61000-4-3Fast transients immunity test: 2 kV conforming to IEC 61000-4-4 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110566000 |
|---|
