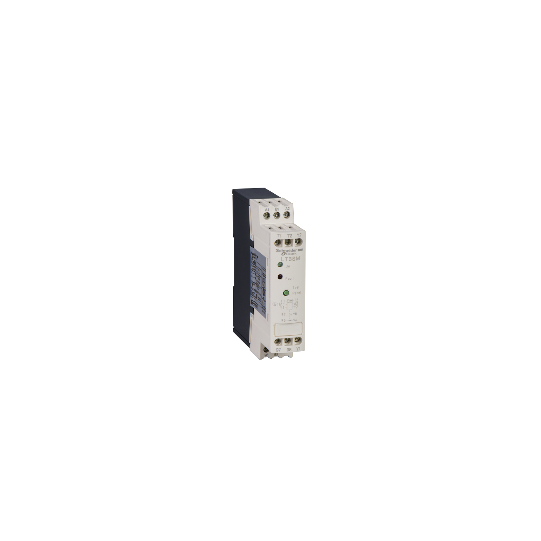

TeSys LT - relais à sonde PTC - LT3 à réarmement manuel - 24..230V - 2OF - LT3SM00MW
DESCRIPTION
| Range of product: | LT3 |
|---|---|
| Device short name: | LT3SM |
| Product or component type: | Thermistor protection units |
| [Uc] control circuit voltage: | 24...230 V AC 50/60 Hz24...230 V DC |
| Reset: | Manual |
| Control circuit voltage limits: | 0.85...1.1 Uc |
|---|---|
| Contacts type and composition: | 2 C/O multi voltage |
| [Ith] conventional free air thermal current: | 5 A for output control relay |
| [Ui] rated insulation voltage: | Output control relay: 500 V AC |
| [Ue] rated operational voltage: | 250 V AC 50/60 Hz for output control relay |
| Signalling function: | Fault indicationVoltage indication |
| Control type: | Manual resetManual test |
| Probe interchangeability: | Label mark A conforming to IEC 60034-11 |
| Hold-in power consumption in W: | 1 W |
| Hold-in power consumption in VA: | 2.5 VA |
| Resistance: | 1500...1650 Ohm reset2700...3100 Ohm tripping |
| Number of probes: | 0...6 |
| Input voltage: | |
| Maximum short circuit detection resistance: | 20 Ohm |
| Condition of use: | Connection of probes 1000 m >2.5 mm²Connection of probes 500 m >1.5 mm² |
| [Uimp] rated impulse withstand voltage: | 2.5 kV |
| Rated power in VA: | 100 VA at 220 V - electrical durability: 500000 cycles |
| Breaking capacity: | 2 A at 24 V DC DC-133 A at 250 V AC AC-166 A at 120 V AC AC-16 |
| Connections - terminals: | Power circuit: cage type connector 1 cable(s) 0.75...2.5 mm²flexible with cable endPower circuit: cage type connector 1 cable(s) 0.75...2.5 mm²solid with cable endPower circuit: cage type connector 1 cable(s) 1...2.5 mm²flexible without cable endPower circuit: cage type connector 1 cable(s) 1...2.5 mm²solid without cable endPower circuit: cage type connector 2 cable(s) 0.75...2.5 mm²flexible with cable endPower circuit: cage type connector 2 cable(s) 0.75...2.5 mm²solid with cable endPower circuit: cage type connector 2 cable(s) 1...2.5 mm²flexible without cable endPower circuit: cage type connector 2 cable(s) 1...2.5 mm²solid without cable end |
| Tightening torque: | 0.8 N.m |
| Height: | 100 mm |
| Width: | 22.5 mm |
| Depth: | 100 mm |
| Net weight: | 0.22 kg |
| Compatibility code: | LT3SM |
| Standards: | IEC 60947-8IEC 60034-11VDE 0660 |
|---|---|
| IP degree of protection: | IP20 conforming to IEC 60529IP20 conforming to VDE 0106 |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...85 °C conforming to IEC 60068-2-2-40...85 °C conforming to IEC 60068-2-2 |
| Operating altitude: | > 1500...3000 m with derating in temperature |
| Vibration resistance: | 1 gn 25...150 Hz conforming to IEC 60068-2-62.5 gn 2...25 Hz conforming to IEC 60068-2-6 |
| Shock resistance: | 5 gn 11 ms conforming to IEC 60068-2-27 |
| Electromagnetic compatibility: | Resistance to electrostatic discharge level 3 conforming to IEC 61000-4-2Resistance to fast transient level 3 conforming to IEC 61000-4-4Surge resistance 1.2/50-8/20 level 4 conforming to IEC 61000-4-5Susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3Immunity to microbreaks and voltage drops conforming to IEC 61000-4-11 |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3389110700756 |
|---|---|
| Rappels: |
Ce disjoncteur Schneider Electric LT3SM00MW est un produit de la gamme TeSys LT. Il réalise une protection sur et possède un type de de déclencheur . D'une consommation de et d'un déclenchement selon une courbe élaborée pour les emplois ci-après : . |
| Substitution_texte: | Produit obsolète |
