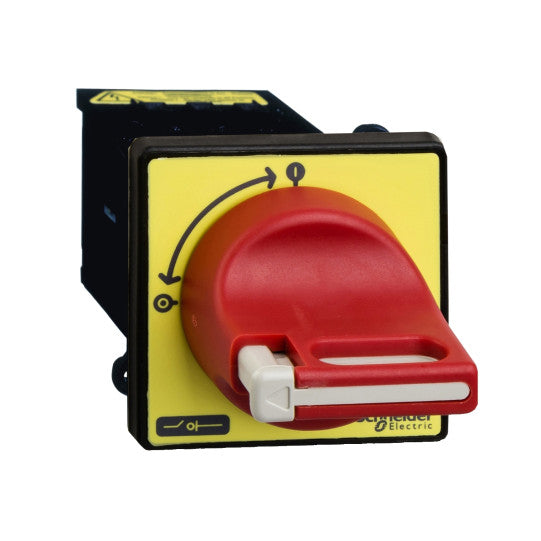

TeSys Mini-Vario - emergency stop switch disconnector - 20 A - on door - VCDN20
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys Mini-VARIO |
| Device short name: | VCDN |
| Product or component type: | Emergency stop switch disconnector |
| Performance level: | Standard |
| Poles description: | 3P |
| Contacts type and composition: | 3 NO |
| Network type: | DCAC |
| Control type: | Rotary handle |
| Rotary handle mounting style: | Direct |
| Handle colour: | Red |
| Handle front plate colour: | Yellow |
| Rotary handle padlocking: | 1 to 3 padlocks 4...8 mm |
| Marking: | 0 - 1 |
|---|---|
| Mounting support: | Handle: doorSwitch: door |
| Fixing mode: | Hole with 22.5 mm for handle |
| [Ith] conventional free air thermal current: | 20 A |
| [Ithe] conventional enclosed thermal current: | 16 A |
| [Ie] rated operational current: | 11 A (AC-23) at 400 V |
| Rated operational power in W: | 4 kW at 230...240 V (AC-23A)5.5 kW at 400...415 V (AC-23A)7.5 kW at 500 V (AC-23A)11 kW at 690 V (AC-23A)3 kW at 230...240 V (AC-3)4 kW at 400...415 V (AC-3)5.5 kW at 500 V (AC-3)5.5 kW at 690 V (AC-3) |
| Intermittent duty class: | 30 |
| Making capacity: | 200 A at 400 V AC-21A200 A at 400 V AC-22A200 A at 400 V AC-23A |
| [Icm] rated short-circuit making capacity: | 0.5 kA at 400 V at Ipeak |
| [Icw] rated short-time withstand current: | 140 A at 400 V duration: 1 s |
| Rated conditional short-circuit current: | 6 kA at 400 V - associated fuse 20 A aM6 kA at 400 V - associated fuse 20 A gG |
| Breaking capacity: | 200 kA at 400 V (AC-21A)200 kA at 400 V (AC-22A)200 kA at 400 V (AC-23A) |
| Device composition: | HandleSwitch |
| Mechanical durability: | 50000 cycles |
| Electrical durability: | 30000 cycles DC-1...550000 cycles AC-21 |
| Suitability for isolation: | Yes |
| Connections - terminals: | Power circuit: screw clamp terminals4 mm² - flexible - with cable endPower circuit: screw clamp terminals4 mm² - solid |
| Tightening torque: | Power circuit: 0.7 N.m - on screw clamp terminals |
| Base dimension: | 60 x 60 mm |
| Height: | 60 mm |
| Width: | 60 mm |
| Product weight: | 0.177 kg |
| Compatibility code: | Main switch disconnector |
| Standards: | IEC 60947-3 |
|---|---|
| Product certifications: | GLCSAULCCC |
| Protective treatment: | TC |
| IP degree of protection: | IP65 |
| Mechanical robustness: | Shocks 11 ms (15 gn) conforming to IEC 60068-2-27Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110759914 |
|---|
