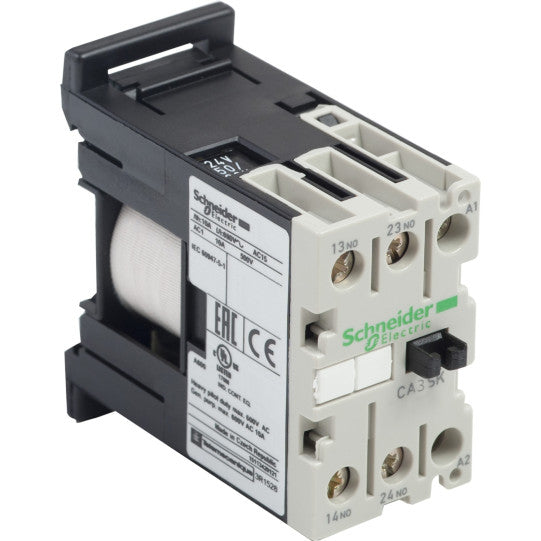

TeSys SK control relay - 2 NO - <= 690 V - 24 V DC standard coil - CA3SK20BD
SKU : CA3SK20BD
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys SK control relay - 2 NO - <= 690 V - 24 V DC standard coil - CA3SK20BD
DESCRIPTION
| Range of product: | TeSys SK control relay |
|---|---|
| Range: | TeSys |
| Product name: | TeSys CASK |
| Product or component type: | Control relay |
| Device short name: | CA3SK |
| Contactor application: | Control circuit |
| Utilisation category: | DC-13AC-15 |
| Pole contact composition: | 2 NO |
| [Ue] rated operational voltage: | |
| Control circuit type: | DC standard |
| [Uc] control circuit voltage: | 24 V DC |
| [Ith] conventional free air thermal current: | 10 A (at 55 °C) |
|---|---|
| Associated fuse rating: | 10 A gL conforming to VDE 066010 A gL conforming to IEC 60947 |
| [Ui] rated insulation voltage: | 690 V conforming to IEC 60947690 V conforming to VDE 0110 group C690 V conforming to BS 5424690 V conforming to UL 508690 V conforming to CSA C22.2 No 14 |
| Mounting support: | RailPlate |
| Connections - terminals: | Screw clamp terminals 1 cable(s) 1.5...6 mm²solidScrew clamp terminals 2 cable(s) 1.5...4 mm²solidScrew clamp terminals 1 cable(s) 0.5...6 mm²flexible without cable endScrew clamp terminals 1 cable(s) 0.35...6 mm²flexible with cable endScrew clamp terminals 2 cable(s) 0.35...1.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 0.35...2.5 mm²flexible without cable end |
| Tightening torque: | 0.8 N.m - on screw clamp terminals pozidriv No 1 screw head |
| Control circuit voltage limits: | Operational: 0.85...1.1 Uc (at Drop-out: 0.1...0.75 Uc (at |
| Operating time: | 4...6 ms coil de-energisation and NO opening8...12 ms coil energisation and NO closing |
| Mechanical durability: | 10 Mcycles |
| Maximum operating rate: | 1200 cyc/h |
| Inrush power in W: | 2.2 W (at 20 °C) |
| Hold-in power consumption in W: | 2.2 W at 20 °C |
| Heat dissipation: | 2.2 W |
| Height: | 56 mm |
| Width: | 27 mm |
| Depth: | 55.5 mm |
| Product weight: | 0.132 kg |
| Compatibility code: | CA3SK |
| Standards: | BS 5424NF C 63-110VDE 0660IEC 60947 |
|---|---|
| Product certifications: | cULus |
| IP degree of protection: | IP2x |
| Protective treatment: | TC conforming to IEC 60068 |
| Ambient air temperature for operation: | -20...50 °C |
| Ambient air temperature for storage: | -50...70 °C |
| Operating altitude: | 2000 m without derating |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110564280 |
|---|
