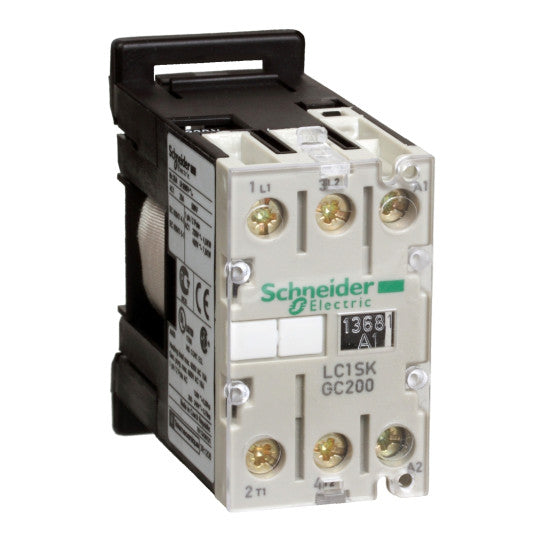

TeSys SK mini contactor - 2P (2 NO) - AC-3 - 690 V 5 A - 400 V AC coil - LC1SKGC200V7
SKU : LC1SKGC200V7
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys SK mini contactor - 2P (2 NO) - AC-3 - 690 V 5 A - 400 V AC coil - LC1SKGC200V7
DESCRIPTION
| Range of product: | TeSys SK |
|---|---|
| Range: | TeSys |
| Product name: | TeSys SK |
| Product or component type: | Mini contactor |
| Device short name: | LC1SKGC |
| Contactor application: | Resistive loadMotor control |
| Utilisation category: | AC-3AC-1 |
| Poles description: | 2P |
| Pole contact composition: | 2 NO |
| [Ue] rated operational voltage: | Power circuit: 690 V AC 50/60 Hz |
| [Ie] rated operational current: | 5 A at 20 A (at |
| Control circuit type: | AC at 50/60 Hz |
| [Uc] control circuit voltage: | 400 V AC 50/60 Hz |
| [Ith] conventional free air thermal current: | 20 A (at 55 °C) for power circuit |
| Irms rated making capacity: | 50 A AC conforming to NF C 63-11050 A AC conforming to IEC 60947 |
| Rated breaking capacity: | 40 A at 40 A at |
| [Icw] rated short-time withstand current: | 40 A 55 °C for power circuit |
| Associated fuse rating: | 20 A gI at |
| Average impedance: | 4 mOhm - Ith 20 A 50 Hz for power circuit |
| [Ui] rated insulation voltage: | Power circuit: 690 V conforming to BS 5424Power circuit: 690 V conforming to IEC 60947Power circuit: 690 V conforming to UL 508Power circuit: 690 V conforming to VDE 0110 group CPower circuit: 690 V conforming to CSA C22.2 No 14 |
| Mounting support: | Rail |
| Standards: | VDE 0660IEC 60947BS 5424NF C 63-110 |
| Product certifications: | cULus |
| Connections - terminals: | Connector 1 cable(s) 1.5...6 mm²solidConnector 2 cable(s) 1.5...4 mm²solidConnector 1 cable(s) 0.5...6 mm²flexible without cable endConnector 2 cable(s) 0.35...2.5 mm²flexible without cable endConnector 1 cable(s) 0.35...6 mm²flexible with cable endConnector 2 cable(s) 0.35...1.5 mm²flexible with cable end |
| Tightening torque: | Power circuit: 0.8 N.m - on connector - with screwdriver pozidriv No 1 |
| Operating time: | 6...8 ms coil de-energisation and NO opening7...14 ms coil energisation and NO closing |
| Mechanical durability: | 10 Mcycles |
| Maximum operating rate: | 1200 cyc/h |
| Control circuit voltage limits: | Operational: 0.85...1.1 Uc at 50/60 Hz (at Drop-out: 0.2...0.75 Uc at 50/60 Hz (at |
|---|---|
| Inrush power in VA: | 16 VA 50/60 Hz (at 20 °C) |
| Hold-in power consumption in VA: | 4.2 VA 50/60 Hz (at 20 °C) |
| Heat dissipation: | 1.4 W at 50/60 Hz |
| Compatibility code: | LC1SKGC |
| IP degree of protection: | IP2x conforming to VDE 0106 |
|---|---|
| Protective treatment: | TC conforming to IEC 60068TC conforming to DIN 50015 |
| Ambient air temperature for operation: | -20...50 °C |
| Ambient air temperature for storage: | -50...70 °C |
| Operating altitude: | 2000 m without derating |
| Height: | 56 mm |
| Width: | 27 mm |
| Depth: | 55.5 mm |
| Product weight: | 0.132 kg |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110563504 |
|---|
