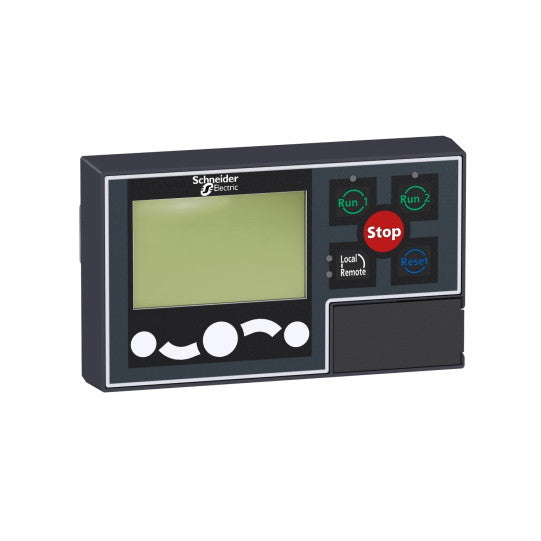

TeSys T Operator control unit for LTM R controller - LTMCU
SKU : LTMCU
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys T Operator control unit for LTM R controller - LTMCU
DESCRIPTION
| Range: | TeSys |
|---|---|
| Device short name: | LTMCU |
| Product or component type: | Operator control unit |
| Range compatibility: | LTMR motor controller |
| Display type: | Backlit LCD |
| Local signalling: | 4 LEDs |
| Control button type: | 10 push-button |
| Device connection: | Connection to a LTM R controller, RJ45 connector on rearConnection to a PC, RJ45 connector on front |
| Supply: | Via the controller |
|---|---|
| Maximum supply current: | 140 mA |
| Power dissipation: | 1 W |
| Standards: | UL 60947-4-1ACSA C22.2 No 60947-4-1EN/IEC 61131-2 |
| Product certifications: | C-TickEACCSANOMULCE |
| Electromagnetic compatibility: | Electrostatic discharge, level 3, 8 kV air, 4 kV contact, conforming to EN/IEC 61000-4-2Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3Conducted RF disturbances, level 3, 10 V, conforming to EN/IEC 61000-4-6Surges (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-5Fast transient bursts (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-4 |
| IP degree of protection: | IP54 (front) conforming to EN/IEC 60947-4-1IP20 (rear) conforming to EN/IEC 60947-4-1 |
| Mounting mode: | Flush-mounted |
| Width: | 117 mm |
| Height: | 70 mm |
| Depth: | 50 mm |
| Product weight: | 0.4 kg |
| Compatibility code: | LTMCU |
| Ambient air temperature for operation: | -20...60 °C |
|---|---|
| Ambient air temperature for storage: | -40...80 °C |
| Relative humidity: | 15...95 % |
| Protective treatment: | TC 12 humidity cycles at 55 °C conforming to EN/IEC 60068-2-30 |
| Mechanical robustness: | Shocks: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27Vibrations: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6 |
| Fire resistance: | 650 °C conforming to EN/IEC 60947-1 |
| Flame retardance: | V2 conforming to UL 94 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119410014 |
|---|
