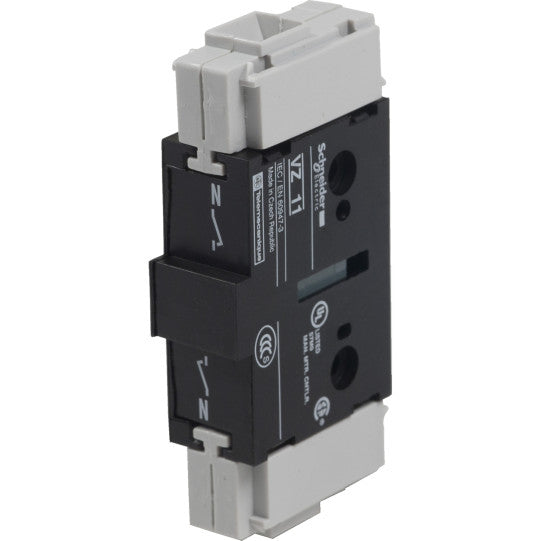

TeSys VARIO - additional neutral block - 40 A - for V02...V2 - VZ11
SKU : VZ11
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys VARIO - additional neutral block - 40 A - for V02...V2 - VZ11
DESCRIPTION
| Range: | TeSys |
|---|---|
| Device short name: | VZ |
| Product or component type: | Additional neutral block |
| Performance level: | High performance |
| Poles description: | 1N |
| Contacts type and composition: | 1 NO |
| Contact operation: | Early make, late break |
| Product compatibility: | V1V2V02V0V01 |
| Range compatibility: | TeSys VARIO switch disconnector |
| Network type: | ACDC |
| Network frequency: | 50/60 Hz |
| Mounting location: | RightLeft |
|---|---|
| [Ue] rated operational voltage: | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage: | 6 kV |
| [Ith] conventional free air thermal current: | 40 A |
| Mechanical durability: | 100000 cycles |
| Electrical durability: | 30000 cycles DC-1...5100000 cycles AC-21 |
| Connections - terminals: | Screw clamp terminals6 mm² - flexible - with cable endScrew clamp terminals10 mm² - solid |
| Tightening torque: | 2.1 N.m - on screw clamp terminals |
| Height: | 74 mm |
| Width: | 16 mm |
| Depth: | 35 mm |
| Product weight: | 0.05 kg |
| Compatibility code: | Neutral pole module |
| Standards: | IEC 60947-3 |
|---|---|
| Product certifications: | GLCSAUL |
| Protective treatment: | TC |
| IP degree of protection: | IP20 conforming to IEC 60529 |
| Mechanical robustness: | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6Shocks 11 ms (15 gn) conforming to IEC 60068-2-27 |
| Ambient air temperature for operation: | -20...50 °C |
| Fire resistance: | 960 °C conforming to IEC 60695-2-1 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110551907 |
|---|
