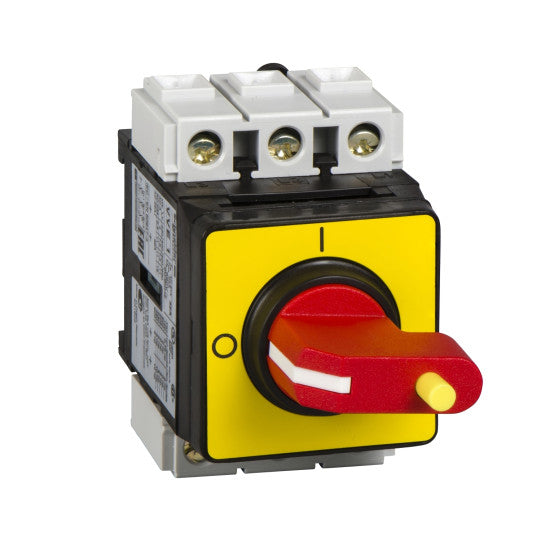

TeSys Vario - emergency stop switch disconnector - 25 A - back of enclosure - VVE0
SKU : VVE0
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys Vario - emergency stop switch disconnector - 25 A - back of enclosure - VVE0
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys VARIO |
| Device short name: | VVE |
| Product or component type: | Emergency stop switch disconnector |
| Device composition: | HandleSwitch |
|---|---|
| Mounting support: | Switch: symmetrical railSwitch: plate |
| Fixing mode: | By clips for switchBy screws for switch |
| Performance level: | High performance |
| Poles description: | 3P |
| Contacts type and composition: | 3 NO |
| [Ue] rated operational voltage: | 690 V AC 50/60 Hz |
| Rated operational power in W: | 11 kW at 500 V (AC-23A)11 kW at 690 V (AC-3)15 kW at 690 V (AC-23A)4 kW at 230...240 V (AC-3)5.5 kW at 400...415 V (AC-3)7.5 kW at 500 V (AC-3)5.5 kW at 230...240 V (AC-23A)7.5 kW at 400...415 V (AC-23A) |
| [Ie] rated operational current: | 14.5 A AC-23 Ue: 400 V |
| [Ith] conventional free air thermal current: | 25 A |
| [Ithe] conventional enclosed thermal current: | 20 A |
| Making capacity: | 250 A at 400 V AC-21A250 A at 400 V AC-22A250 A at 400 V AC-23A |
| Breaking capacity: | 200 A at 400 V (AC-21A)200 A at 400 V (AC-22A)200 A at 400 V (AC-23A) |
| Rated conditional short-circuit current: | 10 kA at 400 V - associated fuse 25 A aM10 kA at 400 V - associated fuse 25 A gG |
| [Icm] rated short-circuit making capacity: | 1 kA at 400 V at Ipeak |
| [Icw] rated short-time withstand current: | 300 A at 400 V duration: 1 s |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| Suitability for isolation: | Yes |
| Network type: | DCAC |
| Intermittent duty class: | 30 |
| Control type: | Rotary handle |
| Rotary handle mounting style: | Direct |
| Handle colour: | Red |
| Handle front plate colour: | Yellow |
| Rotary handle padlocking: | 1 padlock 4...6 mm |
| Marking: | 0 - 1 |
| Mechanical durability: | 100000 cycles |
| Electrical durability: | 100000 cycles AC-2130000 cycles DC-1...5 |
| Connections - terminals: | Power circuit: screw clamp terminals10 mm² - solidPower circuit: screw clamp terminals6 mm² - flexible - with cable end |
| Tightening torque: | Power circuit: 2.1 N.m - on screw clamp terminals |
| Base dimension: | 45 x 45 mm |
| Height: | 74 mm |
| Width: | 55 mm |
| Depth: | 106 mm |
| Product weight: | 0.25 kg |
| Standards: | IEC 60947-3 |
|---|---|
| Product certifications: | ULGLCSA |
| IP degree of protection: | IP65IP65 conforming to IEC 60529 |
| Protective treatment: | TC |
| Mechanical robustness: | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient air temperature for operation: | -20...50 °C |
| Fire resistance: | 960 °C conforming to IEC 60695-2-1 |
| Compatibility code: | Main switch disconnector |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110553116 |
|---|
