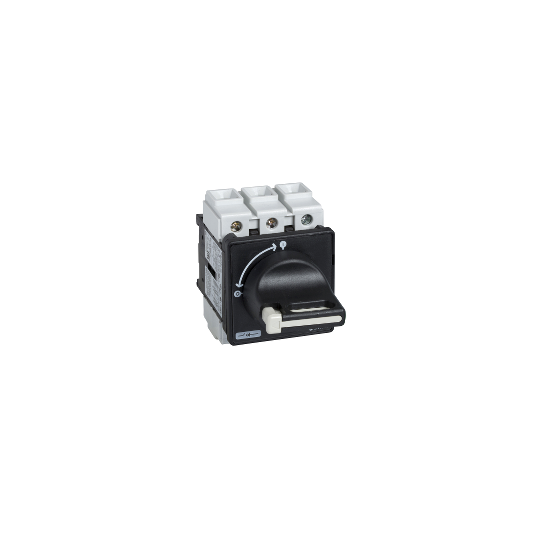

TeSys Vario - switch disconnector - 12 A - on door - VBD02
SKU : VBD02
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys Vario - switch disconnector - 12 A - on door - VBD02
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys VARIO |
| Device short name: | VBD |
| Device application: | Preventive maintenance |
| Product or component type: | Switch disconnector |
| Device composition: | HandleSwitch |
|---|---|
| Mounting support: | Handle: doorSwitch: door |
| Fixing mode: | Hole with 22.5 mm for handle |
| Performance level: | High performance |
| Poles description: | 3P |
| Contacts type and composition: | 3 NO |
| [Ue] rated operational voltage: | 690 V AC 50/60 Hz |
| Rated operational power in W: | 3 kW at 400...415 V (AC-3)4 kW at 500 V (AC-3)1.5 kW at 230...240 V (AC-3)5.5 kW at 500 V (AC-23A)5.5 kW at 690 V (AC-3)7.5 kW at 690 V (AC-23A)3 kW at 230...240 V (AC-23A)4 kW at 400...415 V (AC-23A) |
| [Ie] rated operational current: | 8.1 A AC-23 Ue: 400 V |
| [Ith] conventional free air thermal current: | 12 A |
| [Ithe] conventional enclosed thermal current: | 10 A |
| Making capacity: | 120 A at 400 V AC-21A120 A at 400 V AC-22A120 A at 400 V AC-23A |
| Breaking capacity: | 120 A at 400 V (AC-21A)120 A at 400 V (AC-22A)120 A at 400 V (AC-23A) |
| Rated conditional short-circuit current: | 10 kA at 400 V - associated fuse 12 A aM10 kA at 400 V - associated fuse 12 A gG |
| [Icm] rated short-circuit making capacity: | 1 kA at 400 V at Ipeak |
| [Icw] rated short-time withstand current: | 300 A at 400 V duration: 1 s |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| Suitability for isolation: | Yes |
| Network type: | ACDC |
| Intermittent duty class: | 30 |
| Control type: | Rotary handle |
| Rotary handle mounting style: | Direct |
| Handle colour: | Black |
| Handle front plate colour: | Black |
| Rotary handle padlocking: | 1 to 3 padlocks 4...8 mm |
| Marking: | 0 - 1 |
| Mechanical durability: | 100000 cycles |
| Electrical durability: | 100000 cycles AC-2130000 cycles DC-130000 cycles DC-230000 cycles DC-330000 cycles DC-430000 cycles DC-5 |
| Connections - terminals: | Power circuit: screw clamp terminals10 mm² - solidPower circuit: screw clamp terminals6 mm² - flexible - with cable end |
| Tightening torque: | Power circuit: 2.1 N.m - on screw clamp terminals |
| Base dimension: | 60 x 60 mm |
| Height: | 74 mm |
| Width: | 60 mm |
| Net weight: | 0.215 kg |
| Standards: | IEC 60947-3 |
|---|---|
| Product certifications: | ULCCCGLCSAUKCA |
| IP degree of protection: | IP20 conforming to IEC 60529IP65 |
| Protective treatment: | TC |
| Mechanical robustness: | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient air temperature for operation: | -20...50 °C |
| Fire resistance: | 960 °C conforming to IEC 60695-2-1 |
| Compatibility code: | Main switch disconnector |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389110724905 |
|---|
