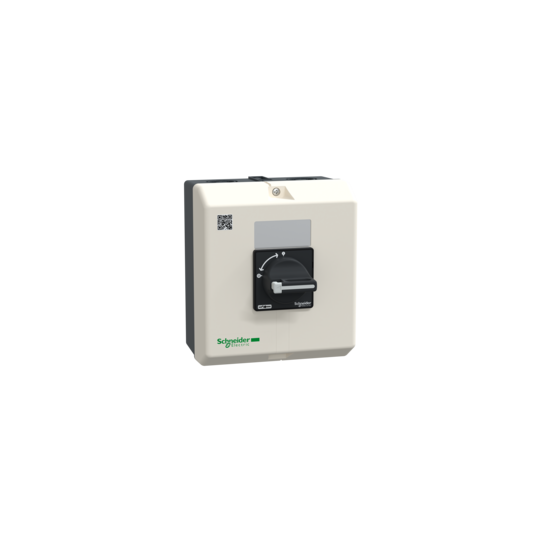

TeSys Vario VBF - enclosed switch disconnector - IP66 - 3P - 50A - VBF3GE
SKU : VBF3GE
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys Vario VBF - enclosed switch disconnector - IP66 - 3P - 50A- VBF3GE
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys VARIO |
| Device short name: | VBF |
| Device application: | Preventive maintenance |
| Product or component type: | Enclosed switch-disconnector |
| Performance level: | High performance |
| Poles description: | 3P |
| Control type: | Rotary handle |
| Handle colour: | Black |
| Handle front plate colour: | Black |
| Rotary handle padlocking: | 1 to 3 padlocks 4...8 mm |
| Marking: | 0 - 1 |
|---|---|
| [Ue] rated operational voltage: | 690 V AC |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| [Ithe] conventional enclosed thermal current: | 50 A |
| [Ie] rated operational current: | 41.5 A (AC-23A) at 400 V |
| Rated operational power in W: | 22 kW at 400 V (AC-23)18.5 kW at 400 V (AC-3) |
| Intermittent duty class: | 30 |
| Making capacity: | 630 A at 400 V AC-21A630 A at 400 V AC-22A630 A at 400 V AC-23A |
| [Icm] rated short-circuit making capacity: | 2.1 kA at 400 V at Ipeak |
| [Icw] rated short-time withstand current: | 756 A at 400 V duration: 1 s |
| Rated conditional short-circuit current: | 10 kA at 400 V - associated fuse 63 A aM10 kA at 400 V - associated fuse 63 A gG |
| Breaking capacity: | 500 A at 400 V (AC-21A)500 A at 400 V (AC-22A)500 A at 400 V (AC-23A) |
| Mechanical durability: | 30000 cycles |
| Electrical durability: | 30000 cycles AC-2130000 cycles DC-1...5 |
| Environmental characteristic: | Standard environment |
| Suitability for isolation: | Yes |
| Connections - terminals: | Screw clamp terminals16 mm² - flexible - with cable endScrew clamp terminals25 mm² - solid |
| Tightening torque: | 4 N.m - on screw clamp terminals |
| Fire resistance: | 960 °C conforming to IEC 60595-2-1 |
| Base dimension: | 60 x 60 mm |
| Height: | 180 mm |
| Width: | 157 mm |
| Depth: | 152 mm |
| Product weight: | 0.93 kg |
| Compatibility code: | Enclosed switch disconnector |
| Standards: | IEC 60204IEC 60947-4-1 |
|---|---|
| Protective treatment: | TC |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| Mechanical robustness: | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient air temperature for operation: | -20...50 °C |
| China RoHS Regulation: | Product out of China RoHS scope. Substance declaration for your informationEnvironmental Disclosure |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389110543865 |
|---|
