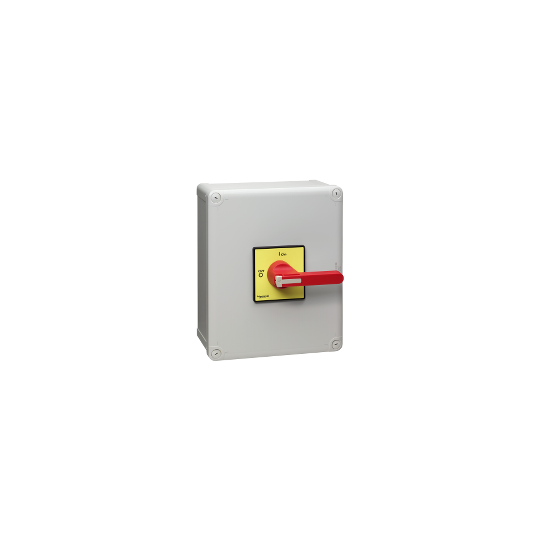

TeSys Vario VCF - enclosed switch disconnector - IP66 - 3P - 100A - VCF5GEN
SKU : VCF5GEN
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys Vario VCF - enclosed switch disconnector - IP66 - 3P - 100A - VCF5GEN
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys VARIO |
| Device short name: | VCF |
| Product or component type: | Enclosed emergency stop switch disconnector |
| Performance level: | High performance |
| Poles description: | 3P |
| Control type: | Rotary handle |
| Type of operator: | Long handle |
| Handle colour: | Red |
| Handle front plate colour: | Yellow |
| Rotary handle padlocking: | 1 to 3 padlocks 4...8 mm |
| Marking: | 0 - 1 |
|---|---|
| [Ue] rated operational voltage: | 690 V AC |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| [Ithe] conventional enclosed thermal current: | 100 A |
| [Ie] rated operational current: | 68.5 A (AC-23A) at 400 V |
| Rated operational power in W: | 37 kW at 400 V (AC-23)30 kW at 400 V (AC-3) |
| Intermittent duty class: | 30 |
| Making capacity: | 1250 A at 400 V AC-21A1250 A at 400 V AC-22A1250 A at 400 V AC-23A |
| [Icm] rated short-circuit making capacity: | 2.8 kA at 400 V at Ipeak |
| [Icw] rated short-time withstand current: | 1500 A at 400 V duration: 1 s |
| Rated conditional short-circuit current: | 10 kA at 400 V - associated fuse 125 A aM10 kA at 400 V - associated fuse 125 A gG |
| Breaking capacity: | 1000 A at 400 V (AC-21A)1000 A at 400 V (AC-22A)1000 A at 400 V (AC-23A) |
| Mechanical durability: | 30000 cycles |
| Electrical durability: | 30000 cycles AC-2130000 cycles DC-1...5 |
| Environmental characteristic: | Standard environment |
| Suitability for isolation: | Yes |
| Connections - terminals: | Screw clamp terminals70 mm² - flexible - with cable endScrew clamp terminals95 mm² - solid |
| Tightening torque: | 22.6 N.m - on screw clamp terminals |
| Fire resistance: | 960 °C conforming to IEC 60595-2-1 |
| Base dimension: | 90 x 90 mm |
| Height: | 291 mm |
| Width: | 241 mm |
| Depth: | 191 mm |
| Net weight: | 2.19 kg |
| Compatibility code: | Enclosed switch disconnector |
| Standards: | IEC 60947-4-1IEC 60204 |
|---|---|
| Protective treatment: | TC |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| Mechanical robustness: | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient air temperature for operation: | -20...50 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389119413213 |
|---|
