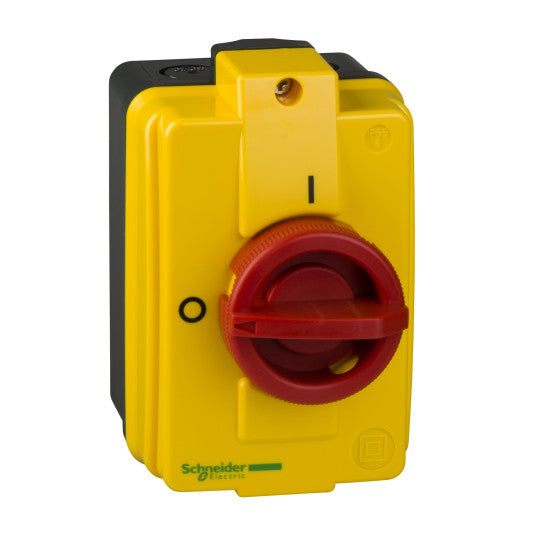

TeSys VCFN - enclosed switch disconnector - IP66 - 3P - 25A - VCFN32GE
SKU : VCFN32GE
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TeSys VCFN - enclosed switch disconnector - IP66 - 3P - 25A - VCFN32GE
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys Mini-VARIO |
| Device short name: | VCFN |
| Product or component type: | Emergency stop switch disconnector |
| Performance level: | Standard |
| Poles description: | 3P |
| Control type: | Rotary handle |
| Handle colour: | Red |
| Handle front plate colour: | Yellow |
| Rotary handle padlocking: | 1 to 3 padlocks 4...8 mm |
| Marking: | 0 - 1 |
|---|---|
| [Ue] rated operational voltage: | 690 V AC |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| [Ithe] conventional enclosed thermal current: | 25 A |
| [Ie] rated operational current: | 21.8 A (AC-23A) at 400 V |
| Rated operational power in W: | 11 kW at 400 V (AC-23)7.5 kW at 400 V (AC-3) |
| Intermittent duty class: | 30 |
| Making capacity: | 320 A at 400 V AC-21A |
| [Icw] rated short-time withstand current: | 384 A at 400 V duration: 1 s |
| Rated conditional short-circuit current: | 10 kA at 400 V |
| Suitability for isolation: | Yes |
| Fire resistance: | 960 °C conforming to IEC 60595-2-1 |
| Base dimension: | 60 x 60 mm |
| Height: | 131 mm |
| Width: | 82.5 mm |
| Depth: | 106 mm |
| Product weight: | 0.512 kg |
| Compatibility code: | Enclosed switch disconnector |
| Standards: | IEC 60947-4-1 |
|---|---|
| Protective treatment: | TC |
| Mechanical robustness: | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient air temperature for operation: | -20...50 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110897715 |
|---|
