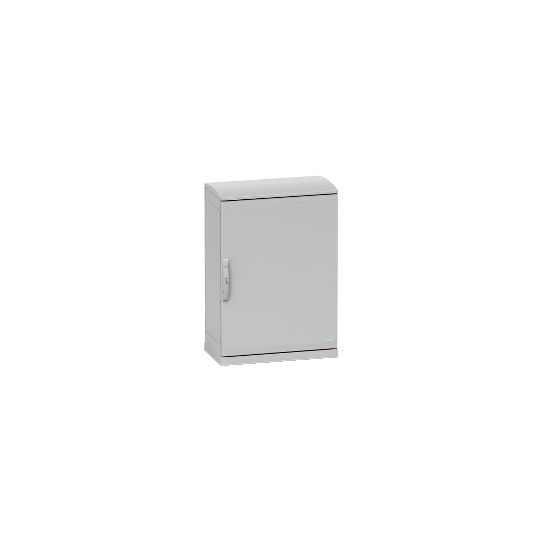

Thalassa PHD outdoor heavy duty - enclosure H788 W500 D320 IP65 plain door - NSYPHDT753P
SKU : NSYPHDT753P
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Thalassa PHD outdoor heavy duty - enclosure H788 W500 D320 IP65 plain door - NSYPHDT753P
DESCRIPTION
| Range: | Thalassa |
|---|---|
| Product name: | Thalassa PHD |
| Product specific application: | Outdoor heavy duty |
| Product certifications: | UL conforming to UL 508 A 2007Bureau Veritas conforming to IEC 61969-3 2011Bureau Veritas conforming to IEC 61439-5 2010DEKRA conforming to IEC 62208 2011 |
| Device application: | Multi-purpose |
| Product or component type: | Suitable enclosure |
| Device short name: | PHDZT |
| Enclosure nominal height: | 788 mm |
| Height: | 38 mm |
| Enclosure nominal width: | 500 mm |
| Enclosure nominal depth: | 320 mm |
| Enclosure mounting: | Wall mounted |
| Device composition: | 1 body in polyester double reinforced with fibreglass1 door in polyester double reinforced with fibreglass1 canopy in polyester double reinforced with fibreglass1 door retainer in steel with anti-corrosive coating1 document pocket in plastic A4 format |
| Body type: | Sealed assembled body |
|---|---|
| Door type: | Plain |
| Number of doors: | 1 door(s) |
| Door opening side: | Right or left (120 °) |
| Lock type: | 2 points lock, handle with 1242E key lock and padlock |
| Accessibility for operation: | Front |
| Maximum load: | 180 kg |
| Removable parts: | Door by hinges |
| Material: | Polyester double reinforced with fibreglass |
| Colour: | Grey (RAL 7035) |
| Standards: | UL 508 AIEC 62208IEC 61969-3IEC 61439-5 |
| Electrical insulation class: | Class II conforming to IEC 61439-1 2011 |
| IP degree of protection: | IP65 conforming to IEC 60529 |
|---|---|
| IK degree of protection: | IK10 conforming to IEC 62262 (plain door) |
| Mechanical robustness: | Vandal-proof conforming to EN/IEC 61439-5 |
| Fire resistance: | 960 °C conforming to IEC 62208 |
| Ambient air temperature for operation: | -45...80 °C conforming to IEC 61969-3 class 1 |
| Ambient air temperature for storage: | -25...40 °C |
| Relative humidity: | C4H level conforming to ISO 12944 |
| Environmental characteristic: | Solar radiation: class 1 up to 1120 W/m² conforming to IEC 61969-3:2011Surrounding air withstand: class 1 up to 180 km/h conforming to IEC 61969-3:2011Ultraviolet degradation test: class 1 conforming to ISO 4892-2:2013Formation of ice and frost: class 1 conforming to IEC 61969-3:2011Fauna and flora withstand: class 1 conforming to IEC 61969-3:2011: class 1 conforming to IEC 61969-3:2011 |
| Power dissipation in W: | Fan: 1500 W for a maximum noise level of 60 dB Natural: 372 W at -25 °CNatural: 163 W at 20 °CNatural: 69 W at 40 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480675997 |
|---|
