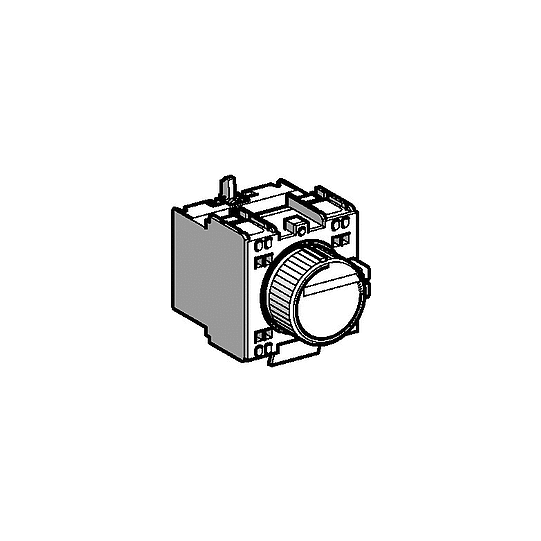

Time delay auxiliary contact block, TeSys D, 1NO + 1NC, off delay 0.3-3s, front, spring terminals - LADR03
SKU : LADR03
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Time delay auxiliary contact block, TeSys D, 1NO + 1NC, off delay 0.3-3s, front, spring terminals - LADR03
DESCRIPTION
| Range: | TeSysTeSys Deca |
|---|---|
| Range of product: | TeSys DTeSys Deca |
| Product name: | TeSys DTeSys Deca |
| Product or component type: | Time delay auxiliary contact block |
| Range compatibility: | TeSys D CADTeSys D LC1DTeSys Deca CADTeSys Deca LC1D |
| Mounting location: | Front |
| Pole contact composition: | 1 NO + 1 NC |
| Auxiliary contacts operation: | Time delay |
| Timer type: | Off delay |
| Time delay range: | 0.3...3 s |
| [Ue] rated operational voltage: | 690 V AC 25...400 Hz |
| [Ie] rated operational current: | 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 |
| [Ui] rated insulation voltage: | 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 |
| [Ith] conventional free air thermal current: | 10 A (at 60 °C) |
| Standards: | EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5 |
| Product certifications: | IECEE CB SchemeULCSACCCEACUKCA |
| Irms rated making capacity: | 140 A AC250 A DC |
|---|---|
| Permissible short-time rating: | 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms |
| Protection type: | GG fuse 10 A |
| Mechanical durability: | 5 Mcycles |
| Minimum switching current: | 5 mA |
| Minimum switching voltage: | 17 V |
| Non-overlap time: | 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact |
| Insulation resistance: | > 10 MOhm |
| Connections - terminals: | Spring terminals 2 cable(s) 2.5 mm²flexible without cable endSpring terminals 2 cable(s) 2.5 mm²rigid |
| Shielding continuity terminal: | Without |
| Colour: | Dark grey |
| Height: | 48 mm |
| Width: | 44 mm |
| Depth: | 61 mm |
| Environmental characteristic: | Normal environment |
|---|---|
| IP degree of protection: | IP20 conforming to IEC 60529 |
| Protective treatment: | TH conforming to IEC 60068 |
| Ambient air temperature for storage: | -60...80 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Operating altitude: | 3000 m |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110821642 |
|---|
