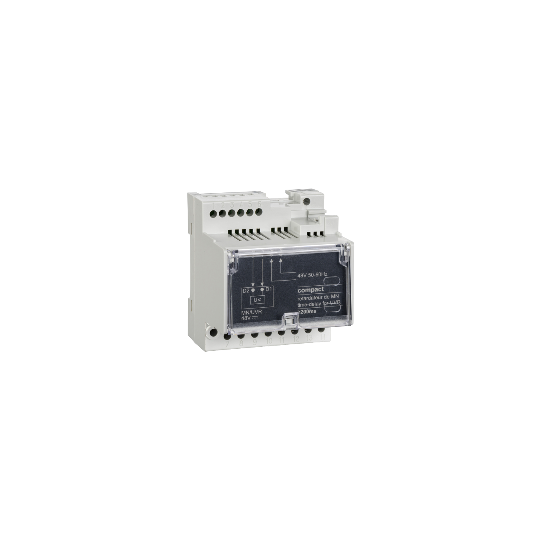

time delay relay - for voltage release MN - 48 V AC - 50/60Hz - LV429426
DESCRIPTION
| Range of product: | ComPact NSX100...250ComPact NSX400...630ComPact NSX100...250 DCComPact NSX400...630 DCComPact NSXm |
|---|---|
| Range: | ComPact |
| Device short name: | MN delay unit |
| Product or component type: | Time delay relay |
| Device application: | Control |
| Range compatibility: | ComPact NSXPowerPact MultistandardComPact NSX DCEasyPact CVSComPact NSXm |
| Voltage release type: | Undervoltage release |
| [Uc] control circuit voltage: | 48 V AC 50/60 Hz |
| Impulse duration: | 200 ms |
|---|---|
| Time delay range: | 200 ms |
| Threshold tripping voltage: | 0.35...0.7 x Un opening0.85 x Un closing |
| Supply holding power: | 4.5 VA |
| Supply inrush power: | 200 VA |
| Mounting mode: | External mounting |
| Response time: |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Reference contains Substances of Very High Concern above the threshold |
| EU RoHS Directive: | Compliant |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Product out of China RoHS scope. Substance declaration for your information |
| Environmental Disclosure: | ENVPEP111256EN |
| Code EAN: | 3606480019180 |
|---|
