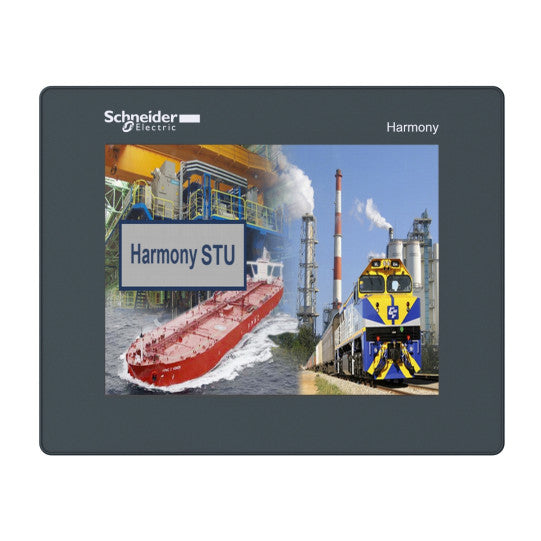

touch panel screen 5''7 Color - HMISTU855
SKU : HMISTU855
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
touch panel screen 5''7 Color - HMISTU855
DESCRIPTION
| Range of product: | Harmony STO & STU |
|---|---|
| Product or component type: | Touch panel screen |
| Software designation: | Vijeo Designer |
| Operating system: | Harmony |
| Processor name: | CPU ARM9 |
| Display size: | 5.7 inch |
|---|---|
| Display type: | QVGA TFT colour touchscreen |
| Display colour: | 65536 colours |
| Display resolution: | 320 x 240 pixels QVGA |
| Touch panel: | Analogue |
| Backlight lifespan: | 50000 hours |
| Brightness: | 16 levels |
| Character font: | Taiwanese (traditional Chinese)Japanese (ANK, Kanji)Chinese (simplified Chinese)ASCIIKorean |
| [Us] rated supply voltage: | 24 V DC |
| Supply: | External source |
| Supply voltage limits: | 20.4...28.8 V |
| Inrush current: | 30 A |
| Power consumption in W: | 6.8 W |
| Number of pages: | Limited by internal memory capacity |
| Processor frequency: | 333 MHz |
| Memory description: | Application memory 16 MBBack up of data 64 kB |
| Integrated connection type: | 1 USB 2.0 type mini B1 USB 2.0 type A COM1 serial link - female RJ45 - RS232C/RS485 (rate: power supply - removable screw terminal block 1 Ethernet - RJ45 |
| Realtime clock: | Access to the PLC real-time clock |
| Downloadable protocols: | Uni-TEModbus TCP/IPThird party protocolsModbus |
| Fixing mode: | Ø 22 mm hole |
| Enclosure material: | PC/PBT and PAA |
| Marking: | With Schneider logoCE |
| Height: | 129.15 mm |
| Width: | 163 mm |
| Depth: | 56.5 mm |
| Immunity to microbreaks: | 7 ms |
|---|---|
| Standards: | UL 1604FCC Class AIEC 61000-6-2EN 61131-2UL 508 |
| Product certifications: | UL class 1 Div2 T4A ou T5C-TickcULusMarine |
| Ambient air temperature for operation: | 0...50 °C |
| Ambient air temperature for storage: | -20...60 °C |
| Relative humidity: | 0...85 % without condensation |
| Operating altitude: | |
| IP degree of protection: | IP20 (rear panel) conforming to IEC 60529IP65 (front panel) conforming to IEC 60529 |
| NEMA degree of protection: | NEMA 4X front panel (indoor use) |
| Shock resistance: | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance: | +/- 3.5 mm (f = 5...9 Hz) conforming to IEC 60068-2-61 gn (f = 9...150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electromagnetic fields: | 10 V/m conforming to IEC 61000-4-3 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606489909499 |
|---|
