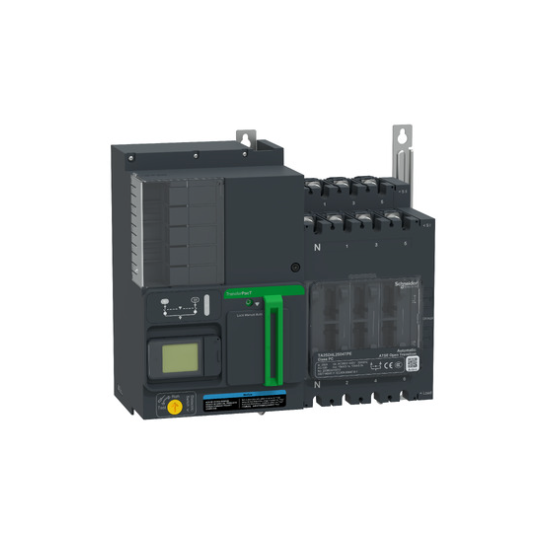

TransferPacT Active Automatic, 250A, 400V, 4P, LCD, frame 250A - TA25D4L2504TPE
SKU : TA25D4L2504TPE
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
TransferPacT Active Automatic, 250A, 400V, 4P, LCD, frame 250A - TA25D4L2504TPE
DESCRIPTION
| Range of product: | TransferPacT |
|---|---|
| Product or component type: | Automatic transfer switch |
| Device application: | Change source of supply |
| Poles description: | 4P |
| Network type: | AC |
| Network frequency: | 50/60 Hz |
| Downside connection: | Screwed |
| Mounting mode: | Fixed |
| Upside connection: | Screwed |
| Contact position indicator: | Yes |
| [Icm] rated short-circuit making capacity: | 30 kA switch-disconnector alone 400 V AC at 50 Hz330 kA with upstream protection circuit breaker 400 V AC at 50 Hz |
| Suitability for isolation: | Yes |
| Transfer switch class: | PC |
|---|---|
| Number of contact position: | 3 |
| Signal contacts composition: | 1 NO + 2 NC1 NC + 2 NO2 NO |
| Utilisation category: | AC-33B |
| [Ue] rated operational voltage: | 400 V AC 50/60 Hz |
| Control type: | 4 push-buttons |
| Operating mode: | AutomaticManual |
| Display type: | LCD screen |
| Mounting support: | Plate |
| Locking options description: | Padlock in OFF positionPadlock in SI / SII position |
| Rated duty: | Uninterrupted |
| [Ui] rated insulation voltage: | Switch: 800 VController: 500 V |
| [Uimp] rated impulse withstand voltage: | Switch: 8 kVController: 6 kV |
| [Ie] rated operational current: | 250 A |
| Mechanical interlocking: | With mechanical interlocking |
| Mechanical durability: | 10000 cycles |
| Connection pitch: | 35 mm |
| Local signalling: | LED indicator (green) for power ONLED indicator (red) for alarm |
| [Icw] rated short-time withstand current: | 10 kA during 0.5 s15 kA during 0.1 s |
| Height: | 341 mm |
| Width: | 370 mm |
| Depth: | 185.8 mm |
| Net weight: | 13.3 kg |
| [Ith] conventional free air thermal current: | 250 A at 60 °C |
| Standards: | IEC 60947-6-1 |
|---|---|
| Product certifications: | CECBCCC |
| IP degree of protection: | Front face: IP40 auto modeInside the enclosure: IP20 manual mode |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Pollution degree: | 3 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606485953199 |
|---|
