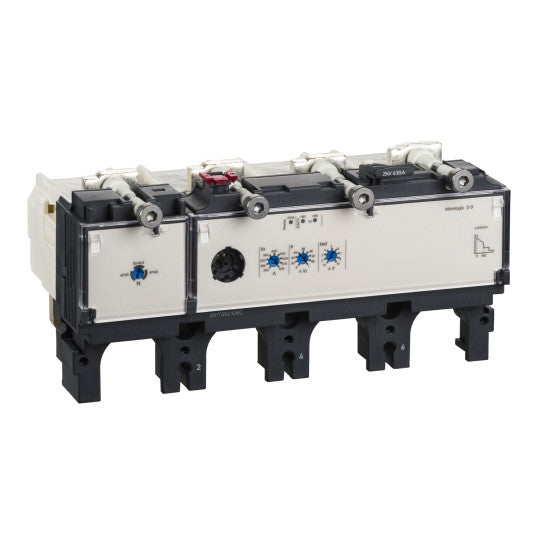

trip unit MicroLogic 2.3 for ComPact NSX 400/630 circuit breakers, electronic, rating 400A, 4 poles 4d - LV432085
SKU : LV432085
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
trip unit MicroLogic 2.3 for ComPact NSX 400/630 circuit breakers, electronic, rating 400A, 4 poles 4d - LV432085
DESCRIPTION
| Range: | ComPact |
|---|---|
| Range of product: | ComPact NSX400...630 |
| Product name: | Micrologic |
| Product or component type: | Trip unit |
| Trip unit name: | Micrologic 2.3 |
| Trip unit technology: | Electronic |
| Range compatibility: | ComPact NSX400ComPact NSX630 |
| Device application: | Distribution |
| Poles description: | 4P |
| Protected poles description: | 3t + N/23t4t |
| Neutral position: | Left |
| Trip unit protection functions: | LSoI |
| Protection type: | L |
| [In] rated current: | 400 A at 40 °C |
| [Ue] rated operational voltage: | 690 V AC 50/60 Hz |
| Network type: | AC |
| Network frequency: | 50/60 Hz |
| Long time pick-up adjustment type Ir: | Adjustable 9 settings |
|---|---|
| Long time pick-up adjustment range: | 160...400 A |
| Long time delay adjustment type: | Fixed |
| [tr] long-time delay adjustment range: | 11 s at 7.2 x Ir16 s at 6 x Ir400 s at 1.5 x Ir |
| Thermal memory: | 20 minutes before and after tripping |
| Short-time pick-up adjustment type Isd: | Adjustable 9 settings |
| [Isd] short-time pick-up adjustment range: | 1.5...10 x Ir |
| Short-time delay adjustment type: | Fixed |
| [tsd] short-time delay adjustment range: | 0.02 s |
| Instantaneous pick-up adjustment type Ii: | Fixed |
| Instantaneous pick-up adjustment range: | 4800 A |
| Earth-leakage protection: | Without |
| Neutral protection setting: | 0.5 x Ir (3t + N/2)1 x Ir (4t)No protection (3t) |
| Zone selective interlocking ZSI: | Without |
| Local signalling: | Flashing LED (green) for ready to operateLED 105 % Ir (red) for overloadLED 90 % Ir (orange) for overload |
| Standards: | EN/IEC 60947-2UL 508 |
|---|---|
| Product certifications: | CCCMarineEAC |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -50...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480016356 |
|---|---|
| Contexte: | Les disjoncteurs et interrupteurs Compact NSX réalisent la commande et le sectionnement des circuits de distribution électrique dans les domaines tertiaires et industriels. Compact NSX est une gamme complète qui offre des performances élevées, un large choix de déclencheurs et des modules d'affichage et de communication.
|
| Substitution_texte: | Obsolete product, here is the proposed substitution for the reference LV432085 : C4042D400 |
