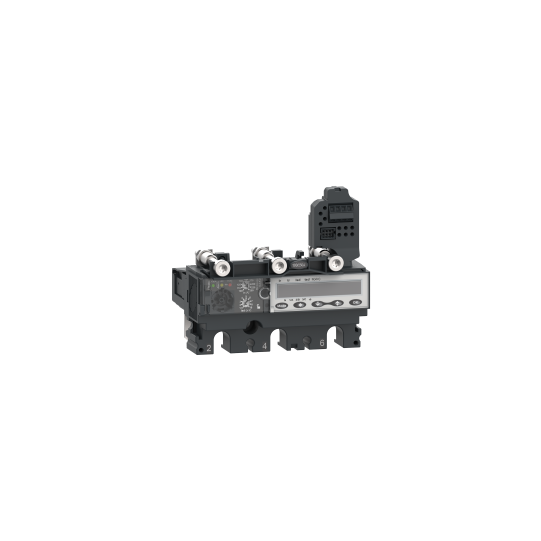

Trip unit MicroLogic 5.2AZ, ComPacT NSX250, 3 poles, electronic basic protections, special applications, 250A rating - C2535Z250
SKU : C2535Z250
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Trip unit MicroLogic 5.2AZ, ComPacT NSX250, 3 poles, electronic basic protections, special applications, 250A rating - C2535Z250
DESCRIPTION
| Range: | ComPacT new generation |
|---|---|
| Range of product: | ComPacT NSX100...250 new generation |
| Product or component type: | Trip unit |
| Trip unit name: | Micrologic 5.2 A-Z |
| Trip unit technology: | Electronic |
| Range compatibility: | ComPacT new generation NSX250 |
| Device application: | 16 Hz 2/3 networks |
| Poles description: | 3P |
| Protected poles description: | 3D |
| Trip unit protection functions: | LSI |
| Protection type: | L |
| [In] rated current: | 250 A at 40 °C |
| [Ue] rated operational voltage: | 250/500 V AC 16 Hz 2/3 |
| Mounting mode: | Fixed |
| Long time pick-up adjustment type Ir: | Adjustable 9 settings |
|---|---|
| Long time pick-up adjustment range: | 100...250 A |
| Long time delay adjustment type: | Adjustable |
| [tr] long-time delay adjustment range: | 15...400 s at 1.5 x Ir0.35...11 s at 7.2 x Ir0.5...16 s at 6 x Ir |
| Thermal memory: | 20 minutes before and after tripping |
| Short-time pick-up adjustment type Isd: | Adjustable 9 settings |
| [Isd] short-time pick-up adjustment range: | 1.5...10 x Ir |
| Short-time delay adjustment type: | Adjustable |
| [tsd] short-time delay adjustment range: | 0...0.4 s I²t=off0.1...0.4 s I²t=on |
| Instantaneous pick-up adjustment type Ii: | Adjustable |
| Instantaneous pick-up adjustment range: | 1.5...12 x In |
| Earth-leakage protection: | Without |
| Zone selective interlocking ZSI: | With |
| Local signalling: | Flashing LED (green) for ready to operateLED 105 % Ir (red) for overloadLED 90 % Ir (orange) for overload |
| Display type: | LCD display |
| Type of measurement: | Ammeter |
| Communication of data: | Energy meteringProtection and alarm settingsTime-stamped histories and event tablesInstantaneous and demand valuesMaintenance indicatorsDemand current and powerPower qualityMaximeters/minimeters |
| Electrical data recording: | Maintenance indicators |
| Standards: | EN/IEC 60947-2 |
|---|---|
| Electrical shock protection class: | Class II |
| Pollution degree: | 3 conforming to IEC 60947-1 |
| IP degree of protection: | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...85 °C |
| REACh Regulation: | Reference contains Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3606482000636 |
|---|
