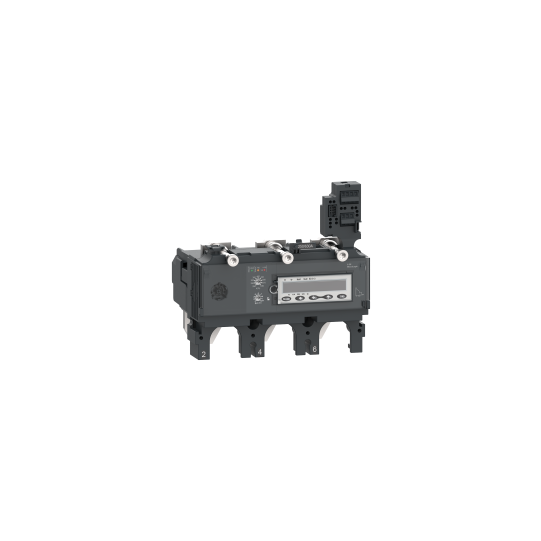

trip unit MicroLogic 6.3 EM for ComPacT NSX 630 circuit breakers, electronic, rating 500 A, 3 poles 3d - C6336M500
SKU : C6336M500
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
trip unit MicroLogic 6.3 EM for ComPacT NSX 630 circuit breakers, electronic, rating 500 A, 3 poles 3d - C6336M500
DESCRIPTION
| Range: | ComPacT new generation |
|---|---|
| Range of product: | ComPacT NSX400...630 new generation |
| Product or component type: | Trip unit |
| Trip unit name: | Micrologic 6.3 E-M |
| Trip unit technology: | Electronic |
| Range compatibility: | ComPacT new generation NSX630 |
| Device application: | Motor |
| Poles description: | 3P |
| Protected poles description: | 3D |
| Trip unit protection functions: | LSIG |
| Protection type: | L |
| [In] rated current: | 500 A at 65 °C |
| [Ue] rated operational voltage: | 690 V AC 50/60 Hz |
| Network type: | AC |
| Network frequency: | 50/60 Hz |
| Mounting mode: | Fixed |
| Motor tripping class: | 5103020 |
|---|---|
| Complementary motor protection: | Current unbalanceProtracted starting timeStalled rotorUnderload |
| Long time pick-up adjustment type Ir: | Adjustable |
| Long time pick-up adjustment range: | 250...500 A |
| Long time delay adjustment type: | Adjustable |
| [tr] long-time delay adjustment range: | 120 s at 1.5 x Ir for trip class 56.5 s at 6 x Ir for trip class 55 s at 7.2 x Ir for trip class 5240 s at 1.5 x Ir for trip class 1013.5 s at 6 x Ir for trip class 1010 s at 7.2 x Ir for trip class 10480 s at 1.5 x Ir for trip class 2026 s at 6 x Ir for trip class 2020 s at 7.2 x Ir for trip class 20720 s at 1.5 x Ir for trip class 3038 s at 6 x Ir for trip class 3030 s at 7.2 x Ir for trip class 30 |
| Thermal memory: | 20 minutes before and after tripping |
| Short-time pick-up adjustment type Isd: | Adjustable 9 settings |
| [Isd] short-time pick-up adjustment range: | 5...13 x Ir |
| Short-time delay adjustment type: | Fixed |
| Instantaneous pick-up adjustment type Ii: | Fixed |
| Instantaneous pick-up adjustment range: | 6500 A |
| Ground-fault pick-up adjustment type: | Adjustable |
| [Ig] ground-fault pick-up adjustment range: | 0.2...1 x InIg enable on/off |
| Ground-fault time delay adjustment type -tg: | Adjustable |
| [tg] ground-fault time delay adjustment range: | 0...0.4 s |
| Earth-leakage protection: | Without |
| Zone selective interlocking ZSI: | With |
| Local signalling: | Flashing LED (green) for ready to operateLED 95 % Ith (red) for temperature over set point |
| Display type: | LCD display |
| Type of measurement: | Energy meter |
| Communication of data: | Energy meteringProtection and alarm settingsTime-stamped histories and event tablesInstantaneous and demand valuesMaintenance indicatorsDemand current and powerPower qualityMaximeters/minimeters |
| Electrical data recording: | Maintenance indicators |
| Standards: | EN/IEC 60947-2 |
|---|---|
| Electrical shock protection class: | Class II |
| Pollution degree: | 3 conforming to IEC 60947-1 |
| IP degree of protection: | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...85 °C |
| REACh Regulation: | Reference contains Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3606482003132 |
|---|
