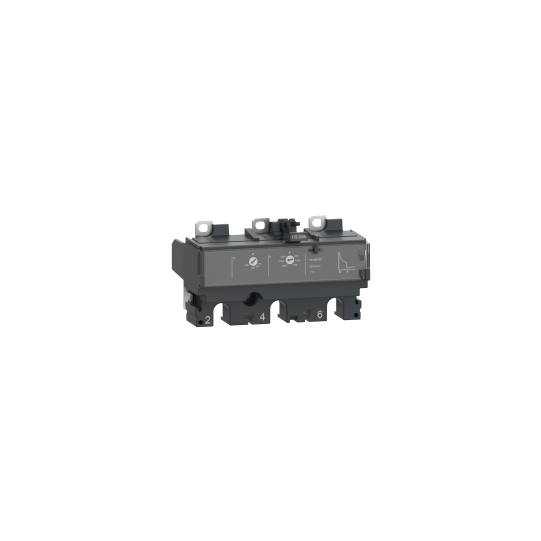

trip unit TM100DC, ComPacT NSX 100 DC, thermal magnetic, 100 A rating, 3P 3d - C103TM100D
SKU : C103TM100D
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
trip unit TM100DC, ComPacT NSX 100 DC, thermal magnetic, 100 A rating, 3P 3d - C103TM100D
DESCRIPTION
| Range: | ComPacT new generation |
|---|---|
| Range of product: | ComPacT NSX100...250 DC new generation |
| Product or component type: | Trip unit |
| Trip unit name: | TM-D |
| Trip unit technology: | Thermal-magnetic |
| Range compatibility: | ComPacT new generation NSX100 DC |
| Device application: | Distribution |
| Poles description: | 3P |
| Protected poles description: | 3D |
| Trip unit protection functions: | LI |
| Protection type: | L |
| [In] rated current: | 100 A at 40 °C |
| [Ue] rated operational voltage: | 750 V DC |
| Network type: | DC |
| Mounting mode: | Fixed |
| Long time pick-up adjustment type Ir: | Adjustable |
|---|---|
| Long time pick-up adjustment range: | 0.7...1 x In |
| Long time delay adjustment type: | Fixed |
| Instantaneous pick-up adjustment type Ii: | Fixed |
| Instantaneous pick-up adjustment range: | 800 A |
| Earth-leakage protection: | Without |
| Standards: | EN/IEC 60947-2 |
|---|---|
| Electrical shock protection class: | Class II |
| Pollution degree: | 3 conforming to IEC 60947-1 |
| IP degree of protection: | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -50...85 °C |
| REACh Regulation: | Reference contains Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3606481994882 |
|---|
