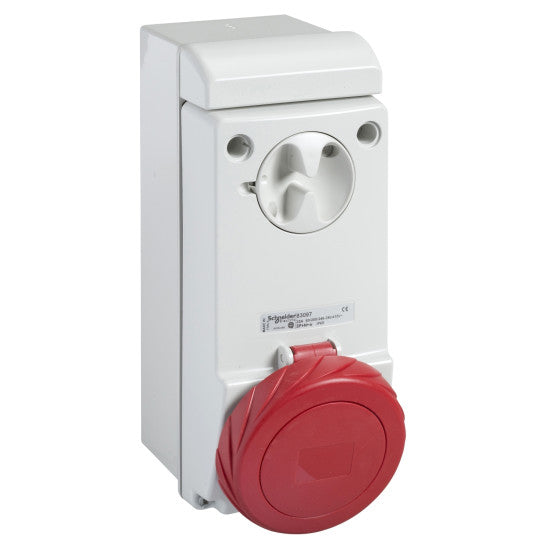

Unika interlocked socket - 63 A - 3P + E - 380...415 V AC - IP65 - wall - PKB63P534
SKU : PKB63P534
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Unika interlocked socket - 63 A - 3P + E - 380...415 V AC - IP65 - wall - PKB63P534
DESCRIPTION
| Range: | PratiKa |
|---|---|
| Range of product: | PratiKa |
| Product name: | Unika socket |
| Product or component type: | Interlocked socket |
| Device short name: | Unika socket |
| Plug, socket category: | Low voltage |
| Poles description: | 3P + E |
| Network type: | AC |
| Outlet standard: | Industrial |
| Mounting mode: | Wall-mounted |
|---|---|
| [In] rated current: | 63 A |
| [Ue] rated operational voltage: | 380...415 V |
| Network frequency: | 50/60 Hz |
| Ground lug clockwise position: | 6 h |
| Protection type: | Without protection |
| Plug, socket material: | Housing: self-extinguishing polymer |
| Contacts material: | Pins: stainless steelScrews: stainless steel |
| Connections - terminals: | Captive screws |
| Maximum cable cross section: | 35 mm² |
| Maximum cable outer diameter: | 25 mm |
| Cable entry: | Cable gland |
| Thread type: | Pg 21 |
| Product weight: | 3 kg |
| Base dimension: | 140 x 430 mm |
| Height: | 430 mm |
| Width: | 140 mm |
| Depth: | 190 mm |
| Colour: | Grey (RAL 7035) |
| Voltage colour: | Red |
| Market segment: | Small commercial |
| Compatibility code: | Unika socket |
| Standards: | IEC 60309-1IEC 60309-2 |
|---|---|
| IP degree of protection: | IP65 conforming to IEC 60529 |
| IK degree of protection: | IK09 conforming to EN 62262 |
| Fire resistance: | 750 °C conforming to IEC 60695-2-11 |
| Relative humidity: | 50 % at 40 °C70 % at 30 °C90 % at 20 °C |
| Ambient air temperature for operation: | 35 °C ( 86400 s ) -25...40 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3303432448196 |
|---|
