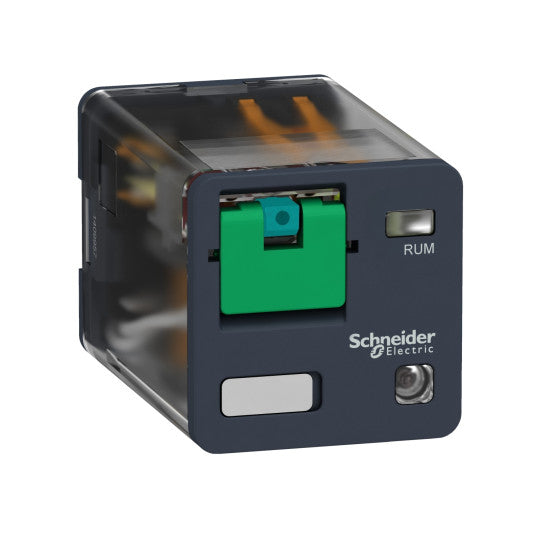

universal plug-in relay - Zelio RUM - 3 C/O - 24 V DC - 10 A - with LED - RUMC32BD
SKU : RUMC32BD
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
universal plug-in relay - Zelio RUM - 3 C/O - 24 V DC - 10 A - with LED - RUMC32BD
DESCRIPTION
| Range of product: | Harmony Electromechanical Relays |
|---|---|
| Series name: | Universal |
| Product or component type: | Plug-in relay |
| Device short name: | RUM |
| Contacts type and composition: | 3 C/O |
| [Uc] control circuit voltage: | 24 V DC |
| [Ithe] conventional enclosed thermal current: | 10 A at -40...55 °C |
| Status LED: | With |
| Control type: | Lockable test button |
| Utilisation coefficient: | 20 % |
| [Uc] control circuit voltage: | 24 V |
| [In] rated current: | 10 A |
| Shape of pin: | Cylindrical |
|---|---|
| [Ui] rated insulation voltage: | 250 V conforming to IEC300 V conforming to CSA300 V conforming to UL |
| [Uimp] rated impulse withstand voltage: | 4 kV (1.2/50 µs) |
| Contacts material: | AgNi |
| [Ie] rated operational current: | 10 A at 277 V AC conforming to UL10 A at 30 V DC conforming to UL10 A at 277 V AC (same polarity) conforming to CSA10 A at 30 V DC conforming to CSA5 A at 250 V AC (NC) conforming to IEC5 A at 28 V DC (NC) conforming to IEC10 A at 250 V AC (NO) conforming to IEC10 A at 28 V DC (NO) conforming to IEC |
| Maximum switching voltage: | 250 V conforming to IEC |
| Load current: | 10 A at 250 V AC10 A at 28 V DC |
| Maximum switching capacity: | 2500 VA/280 W |
| Minimum switching capacity: | 170 mW at 10 mA, 17 V |
| Operating rate: | |
| Mechanical durability: | 5000000 cycles |
| Electrical durability: | 100000 cycles for resistive load |
| Average coil consumption: | 1.4 W |
| Drop-out voltage threshold: | >= 0.1 Uc DC |
| Operating time: | 20 ms at nominal voltage |
| Reset time: | 20 ms at nominal voltage |
| Average resistance: | 470 Ohm at 20 °C +/- 15 % |
| Rated operational voltage limits: | 19.2...26.4 V DC |
| Protection category: | RT I |
| Test levels: | Level A group mounting |
| Safety reliability data: | B10d = 100000 |
| Operating position: | Any position |
| Product weight: | 0.086 kg |
| Device presentation: | Complete product |
| Compatibility code: | RUM |
| Dielectric strength: | 1500 V AC between contacts with micro disconnection2500 V AC between coil and contact with reinforced2000 V AC between poles with basic |
|---|---|
| Product certifications: | EACULCSA |
| Standards: | EN/IEC 61810-1CSA C22.2 No 14UL 508 |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | -40...55 °C |
| Vibration resistance: | 3 gn, amplitude = +/- 1 mm (f = 10...150 Hz)5 cycles in operation4 gn, amplitude = +/- 1 mm (f = 10...150 Hz)5 cycles not operating |
| IP degree of protection: | IP40 |
| Shock resistance: | 10 gn (duration = 11 ms) for in operation conforming to EN/IEC 60068-2-2710 gn (duration = 11 ms) for not operating conforming to EN/IEC 60068-2-27 |
| Pollution degree: | 2 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480626937 |
|---|
