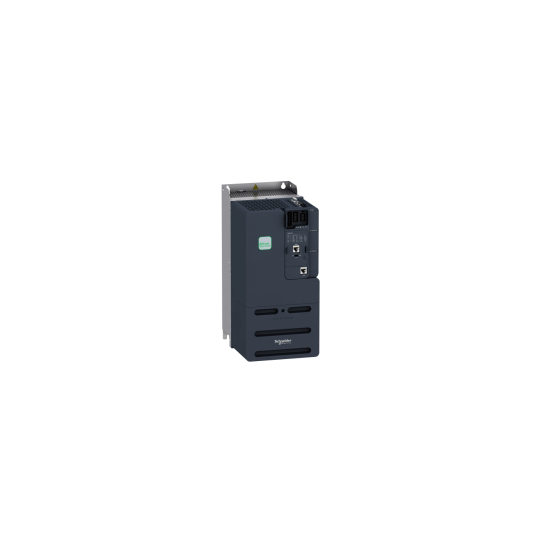

variable speed drive - 22kW- 400V - 3 phases - ATV340 - ATV340D22N4

Name: variable speed drive - 22kW- 400V - 3 phases - ATV340 - ATV340D22N4
Brand: Schneider Electric
SKU: ATV340D22N4
Availability: InStock

SKU : ATV340D22N4

Regular price €0,00

We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

Lead time: 2–3 weeks – Ships quickly after order confirmation

variable speed drive - 22kW- 400V - 3 phases - ATV340 - ATV340D22N4

DESCRIPTION

DESCRIPTION

Range of product:	Altivar Machine ATV340
Product or component type:	Variable speed drive
Product specific application:	Machine
Variant:	Standard version
Design of frequency changer:	U converter
Mounting mode:	Cabinet mount
Communication port protocol:	Modbus serial
Option card:	Communication module, Profibus DP V1Communication module, PROFINETCommunication module, DeviceNetCommunication module, CANopenCommunication module, EtherCAT
Network number of phases:	3 phases
Supply frequency:	50...60 Hz +/- 5 %
[Us] rated supply voltage:	380...480 V - 15...10 %
[Us] rated supply voltage:	380...480 V
Relative symmetric mains voltage tolerance:	10 %
Relative symmetric network frequency tolerance:	5 %
Nominal output current:	46.0 A
Number of input phases:	3
Number of output phases:	3
Motor power kW:	30 kW for normal duty22 kW for heavy duty
Motor power hp:	40 hp for normal duty30 hp for heavy duty
EMC filter:	Class C3 EMC filter integrated
IP degree of protection:	IP20

Discrete input number:	5
Discrete input type:	PTI programmable as pulse input: 0...30 kHz, 24 V DC (30 V)DI1...DI5 safe torque off, 24 V DC (30 V), impedance: 3.5 kOhm programmable
Discrete input logic:	16 preset speeds
Discrete output number:	2.0
Discrete output type:	Programmable output DQ1, DQ2 30 V DC 100 mA
Analogue input number:	2
Analogue input type:	AI1 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bitsAI1 software-configurable temperature probe or water level sensorAI1 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bitsAI2 software-configurable voltage: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits
Analogue output number:	2
Analogue output type:	Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bitsSoftware-configurable current AQ1: 0...20 mA impedance 500 Ohm, resolution 10 bits
Relay output number:	2
Relay output type:	Relay outputs R1ARelay outputs R1C electrical durability 100000 cyclesRelay outputs R2ARelay outputs R2C electrical durability 100000 cycles
Output voltage:
Number of inputs, bidirectional, not potential-free:	0
Number of inputs, potential-free:	0
Maximum switching current:	Relay output R1C on resistive load, cos phi = 1: 3 A at 250 V ACRelay output R1C on resistive load, cos phi = 1: 3 A at 30 V DCRelay output R1C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V ACRelay output R1C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DCRelay output R2C on resistive load, cos phi = 1: 5 A at 250 V ACRelay output R2C on resistive load, cos phi = 1: 5 A at 30 V DCRelay output R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V ACRelay output R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC
Minimum switching current:	Relay output R1B: 5 mA at 24 V DCRelay output R2C: 5 mA at 24 V DC
Encoder protocol:	1 VppEnDat 2.2ResolverRS 422SSI 24VSSI 5VTTL/HTL
Computer port:	True
Optical interface present:	False
Physical interface:	2-wire RS 485
Connector type:	1 RJ45
Method of access:	Slave Modbus RTU
Transmission rate:	4.8 kbit/s9.6 kbit/s19.2 kbit/s38.4 kbit/s
Transmission frame:	RTU
Number of addresses:	1...247
Data format:	8 bits, configurable odd, even or no parity
Type of polarization:	No impedance
Number of HW interfaces parallel:	0
Number of HW interfaces industrial Ethernet:	0
Number of HW interfaces PROFINET:	0
Number of HW interfaces serial RS232:	0
Number of HW interfaces serial RS422:	0
Number of HW interfaces serial RS485:	1
Number of HW interfaces serial TTY:	0
Number of HW interfaces USB:	0
Number of HW interfaces other:	0
Supporting protocol for AS-Interface Safety at Work:	False
Supporting protocol for ASI:	False
Supporting protocol for SUCONET:	False
Supporting protocol for BACnet:	False
Supporting protocol for CAN:	True
Supporting protocol for Data-Highway:	False
Supporting protocol for DeviceNet:	False
Supporting protocol for DeviceNet Safety:	False
Supporting protocol for EtherNet/IP:	False
Supporting protocol for Foundation Fieldbus:	False
Supporting protocol for INTERBUS:	False
Supporting protocol for INTERBUS-Safety:	False
Supporting protocol for KNX:	False
Supporting protocol for LON:	False
Supporting protocol for MODBUS:	True
Supporting protocol for other bus systems:	True
Supporting protocol for PROFIBUS:	True
Supporting protocol for PROFINET CBA:	True
Supporting protocol for PROFINET IO:	True
Supporting protocol for PROFIsafe:	False
Supporting protocol for SafetyBUS P:	False
Supporting protocol for SERCOS:	False
Supporting protocol for TCP/IP:	False
4 quadrant operation possible:	True
Asynchronous motor control profile:	Variable torque standardConstant torque standardOptimized torque mode
Pollution degree:	2 conforming to EN/IEC 61800-5-1
Synchronous motor control profile:	Permanent magnet motorReluctance motor
Maximum output frequency:	0.599 kHz
Acceleration and deceleration ramps:	Linear adjustable separately from 0.01...9999 sS, U or customized
Motor slip compensation:	AdjustableCan be suppressedAutomatic whatever the loadNot available in permanent magnet motor law
Switching frequency:	2...16 kHz adjustable6...16 kHz with derating factor
Nominal switching frequency:	4 kHz
Speed drive output frequency:	0.1...599 Hz
Braking to standstill:	By DC injection
Brake chopper integrated:	True
Line current:	60.1 A at 380 V (normal duty)48.6 A at 480 V (normal duty)63.5 A at 380 V (heavy duty)50.6 A at 480 V (heavy duty)64.1 A at 480 V with external line choke (heavy duty)50.8 A at 380 V with external line choke (normal duty)
Maximum associated fuse rating:	100.0 A
Maximum input current:	63.5 A
Maximum output voltage:	480 V
Nominal output power:	22.0 kW
Apparent power:	45.1 kVA at 480 V (normal duty)42.1 kVA at 480 V (heavy duty)
Maximum transient current:	68.2 A during 60 s (normal duty)69 A during 60 s (heavy duty)83.7 A during 2 s (normal duty)83 A during 2 s (heavy duty)
Electrical connection:	Screw terminal, clamping capacity: 0.2...2.5 mm² for controlScrew terminal, clamping capacity: 6...25 mm² for motorScrew terminal, clamping capacity: 10...25 mm² for line sideScrew terminal, clamping capacity: 10...25 mm² for DC bus
Capacity of DC link:	2250.0 µF
Network frequency:	50...60 Hz
Prospective line Isc:	22 kA
1 phase low current possible:	False
Base load current at high overload:	46.0 A
Base load current at low overload:	62.0 A
Application in domestic and commercial area permitted:	False
Application in industrial area permitted:	True
EMC limit value (complied):	True
Power loss per device current dependent:	746.0 W
Power loss static current independent:	19.0 W
Power dissipation in W:	Natural convection: 28 W at 380 V, switching frequency 4 kHz (heavy duty)Forced convection: 486 W at 380 V, switching frequency 4 kHz (heavy duty)Natural convection: 39 W at 380 V, switching frequency 4 kHz (normal duty)Forced convection: 631 W at 380 V, switching frequency 4 kHz (normal duty)
Housing material:	Plastic
With safety function Safely Limited Speed (SLS):	True
With safety function Safe brake management (SBC/SBT):	True
With safety function Safe Operating Stop (SOS):	False
With safety function Safe Position (SP):	False
With safety function Safe programmable logic:	False
With safety function Safe Speed Monitor (SSM):	False
With safety function Safe Stop 1 (SS1):	True
With sft fct Safe Stop 2 (SS2):	False
With safety function Safe torque off (STO):	True
With safety function Safely Limited Position (SLP):	False
With safety function Safe Direction (SDI):	False
Protection type:	Thermal protection: motorSafe torque off: motorMotor phase loss: motorThermal protection: driveSafe torque off: driveOverheating: driveOvercurrent: driveOutput overcurrent between motor phase and earth: driveOutput overcurrent between motor phases: driveShort-circuit between motor phase and earth: driveShort-circuit between motor phases: driveMotor phase loss: driveDC Bus overvoltage: driveLine supply overvoltage: driveLine supply undervoltage: driveInput supply loss: driveExceeding limit speed: driveBreak on the control circuit: drive
Operating element present:	True
Width:	180.0 mm
Height:	385.0 mm
Depth:	249.0 mm
Net weight:	10.2 kg
Specific application:	Machine
Motor starter type:	Variable speed drive
Accuracy:	+/- 0.6 % AI1, AI2 for a temperature variation 60 °C analog input+/- 1 % AQ1 for a temperature variation 60 °C analog output
Connector type:	connector(s)1 x RJ45, Modbus serial on front face connector(s)1 x RJ45, Modbus serial for HMI on front face
Discrete input logic:	Positive logic (source) (DI1...DI5), 11 V (state 1)Negative logic (sink) (DI1...DI5), > 16 V (state 0), Positive logic (source) (PTI), 2.5 V (state 1)Positive logic (source) (STOA, STOB), 11 V (state 1)
Input compatibility:	DI1...DI5: discrete input level 1 PLC conforming to EN/IEC 61131-2PTI: pulse input level 1 PLC conforming to IEC 65A-68STOA, STOB: discrete input level 1 PLC conforming to EN/IEC 61131-2
Input/output type:	Programmable as logic input/output DQ1: 0...1 kHz, Programmable as logic input/output DQ2: 0...1 kHz,
Continuous output current:	62 A at 4 kHz for normal duty46 A at 4 kHz for heavy duty
Sampling duration:	2 ms +/- 0.5 ms (DI1...DI5) - discrete input5 ms +/- 1 ms (PTI) - pulse input1 ms +/- 1 ms (AI1, AI2) - analog input5 ms +/- 1 ms (AQ1) - analog output2 ms +/- 0.5 ms (DQ1, DQ2) - discrete input/output
Refresh time:	Relay output (R1, R2): 5 ms (+/- 0.5 ms)
Safety function:	STO (safe torque off) SIL 3
Vibration resistance:	1.5 mm peak to peak (f= 2...19 Hz) conforming to EN/IEC 60721-3-3 class 3M31 gn (f= 9...200 Hz) conforming to EN/IEC 60721-3-3 class 3M3
Discrete and process manufacturing:	Hoisting tower craneHoisting other applicationMaterial handling grouping conveyorMaterial handling palletizer - high performanceMaterial working (wood, ceramic, stone, pvc, metal) cutting - high accuracyMaterial working (wood, ceramic, stone, pvc, metal) polishingMaterial working (wood, ceramic, stone, pvc, metal) grindingMaterial working (wood, ceramic, stone, pvc, metal) slitterPackaging filling bottles - synchronized operationPackaging feed conveyor - medium performancePackaging grouping boxingPackaging conveyorPackaging elevatorPackaging other applicationHoisting standard crane - hoistMaterial handling automatic storage / retrieval systemPackaging shrinking wrapping

NEMA degree of protection:	Not applicable
Operating altitude:
Operating position:	Vertical +/- 10 degree
Product certifications:	ULCSATÜVEACCTick
Marking:	CE
Standards:	EN/IEC 61800-3EN/IEC 61800-5-1IEC 60721-3IEC 61508IEC 13849-1UL 618000-5-1UL 508C
Assembly style:	With heat sink
Electromagnetic compatibility:	Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Environmental class (during operation):	Class 3C3 according to IEC 60721-3-3Class 3S3 according to IEC 60721-3-3
Environmental class (during storage):	Class 1C3 according to EN 60721-3-1Class 1S2 according to EN 60721-3-1
Environmental class (during transport):	Class 2C3 according to EN 60721-3-2Class 2S1 according to EN 60721-3-2
Maximum acceleration under shock impact (during operation):	70 m/s² at 22 ms
Maximum acceleration under shock load (during storage):	70 m/s² at 22 ms
Maximum acceleration under shock load (during transport):	70 m/s² at 22 ms
Maximum acceleration under vibratory load (during storage):	5 m/s² at 9...200 Hz
Maximum acceleration under vibratory load (during transport):	5 m/s² at 9...200 Hz
Maximum acceleration under vibrational stress (during operation):	5 m/s² at 9...200 Hz
Maximum deflection under vibratory load (during storage):	1.5 mm at 2...9 Hz
Maximum deflection under vibratory load (during transport):	1.5 mm at 2...9 Hz
Maximum deflection under vibratory load (during operation):	1.5 mm at 2...9 Hz
Permitted relative humidity (during operation):	Class 3K5 according to EN 60721-3
Permitted relative humidity (during storage):	Class 1K5 according to EN 60721-3
Permitted relative humidity (during transport):	Class 2K5 according to EN 60721-3
Volume of cooling air:	128.0 m3/h
Type of cooling:	Forced convection
Overvoltage category:	Class III
Regulation loop:	Adjustable PID regulator
Noise level:	56.7 dB
Pollution degree:	2
Ambient air transport temperature:	-40...70 °C
Ambient air temperature for operation:	-15...50 °C without derating (vertical position)50...60 °C with derating factor (vertical position)
Ambient air temperature for operation:	-15...60 °C
Ambient air temperature for storage:	-40...70 °C
Power range:	15...25 kW at 380...440 V 3 phases15...25 kW at 480...500 V 3 phases
Isolation:	Between power and control terminals
Insulation resistance:	> 1 MOhm 500 V DC for 1 minute to earth
Linearity error:	AI1, AI2: +/- 0.15 % of maximum value for analog inputAQ1: +/- 0.2 % for analog output
Shock resistance:	15 gn for 11 ms, class 3M3 conforming to EN/IEC 60721-3-3
Sustainable offer status:	Green Premium productREACh Regulation
Unit Type of Package 1:	PCENumber of Units in Package 1

Code EAN:	3606480966972
