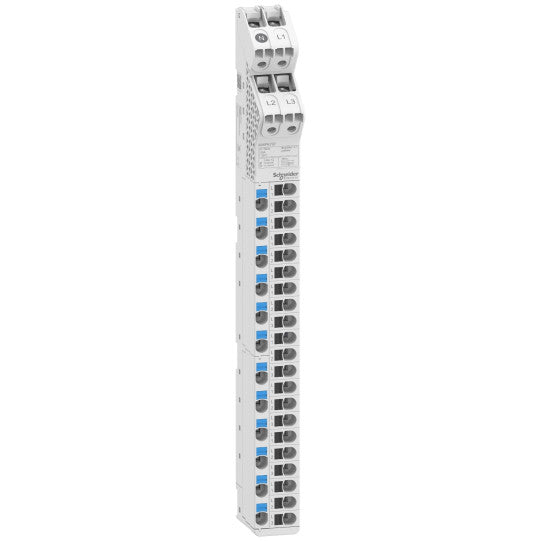

Vertical distribution block, Acti9 VDIS, 3P+N, 125A, 250/440VAC, 33 connection points - A9XPK707
SKU : A9XPK707
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Vertical distribution block, Acti9 VDIS, 3P+N, 125A, 250/440VAC, 33 connection points - A9XPK707
DESCRIPTION
| Range: | Acti9 |
|---|---|
| Product name: | Acti9 VDIS |
| Product or component type: | Vertical distribution block |
| [In] rated current: | 125 A |
|---|---|
| [Ue] rated operational voltage: | 250/440 V |
| Network type: | AC |
| Network frequency: | 50/60 Hz |
| [Ui] rated insulation voltage: | 500 V |
| [Uimp] rated impulse withstand voltage: | 6 kV |
| Number of terminal blocks: | 1 with 33 outgoers |
| Connections - terminals: | Supply: tunnel type terminals10...35 mm²Distribution: push-in spring terminals1.5...10 mm² (rigid) Distribution: push-in spring terminals4...16 mm² (stranded) Distribution: push-in spring terminals1.5...16 mm² (flexible) Distribution: push-in spring terminals1.5...16 mm² (flexible with ferrule) |
| Distribution block outgoers: | 7 holes for per phase12 holes for neutral |
| Height: | 408 mm |
| Depth: | 71.5 mm |
| Width: | 40.5 mm |
| Product weight: | 1.14 kg |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| REACh free of SVHC: | Yes |
| EU RoHS Directive: | Compliant |
| Toxic heavy metal free: | Yes |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Product out of China RoHS scope. Substance declaration for your information |
| Environmental Disclosure: | ENVPEP1811008EN |
| WEEE: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Halogen content performance: | Halogen free product |
| Code EAN: | 3606489667573 |
|---|
