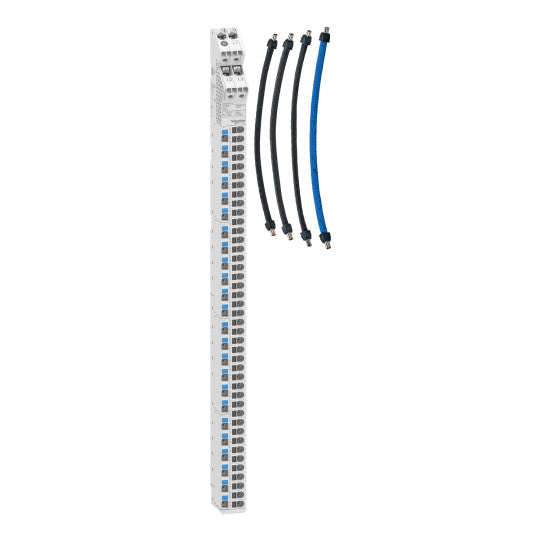

Vertical distribution block, Acti9 VDIS, with cables, 3P+N, 160A, 250/440VAC, 66 connection points - A9XPK715
SKU : A9XPK715
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Vertical distribution block, Acti9 VDIS, with cables, 3P+N, 160A, 250/440VAC, 66 connection points - A9XPK715
DESCRIPTION
| Range: | Acti9 |
|---|---|
| Product name: | Acti9 VDIS |
| Product or component type: | Vertical distribution block |
| Range compatibility: | PragmaPrisma GPrisma Pack 250Prisma Pack 160PrismaSeT S |
| Provided equipment: | Cable 4 380 mm |
|---|---|
| Cable stiffness: | Flexible |
| Poles description: | 3P + N |
| [In] rated current: | 160 A |
| [Ue] rated operational voltage: | 250/440 V |
| Network type: | AC |
| Network frequency: | 50/60 Hz |
| [Ui] rated insulation voltage: | 500 V |
| [Uimp] rated impulse withstand voltage: | 6 kV |
| Number of terminal blocks: | 1 with 66 outgoers |
| Connections - terminals: | Supply: tunnel type terminals10...35 mm²Distribution: push-in spring terminals1.5...10 mm² (rigid) Distribution: push-in spring terminals4...16 mm² (stranded) Distribution: push-in spring terminals1.5...16 mm² (flexible) Distribution: push-in spring terminals1.5...16 mm² (flexible with ferrule) |
| Distribution block outgoers: | 14 holes for per phase24 holes for neutral |
| Pollution degree: | 3 |
| Height: | 680 mm |
| Depth: | 71.5 mm |
| Width: | 40.5 mm |
| Net weight: | 2.04 kg |
| IP degree of protection: | IPxx B |
|---|---|
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606482158689 |
|---|
