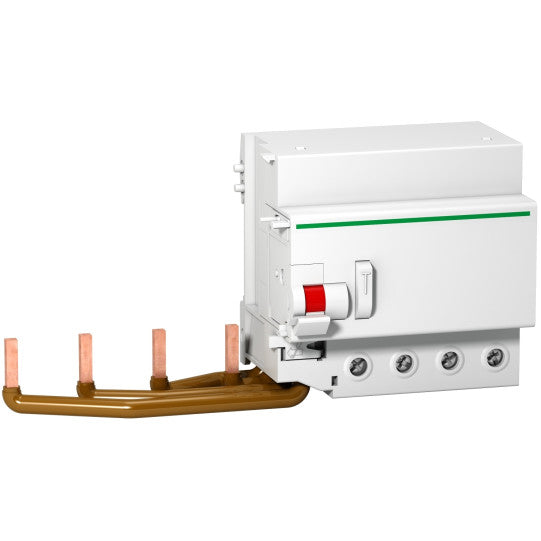

Vigi C120 - earth leakage add-on block - 4P - 300 mA - class A si - A9N18555
SKU : A9N18555
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Vigi C120 - earth leakage add-on block - 4P - 300 mA - class A si - A9N18555
DESCRIPTION
| Range of product: | C120 |
|---|---|
| Product or component type: | Add-on residual current devices |
| Device short name: | Vigi C120 |
| Poles description: | 4P |
| [In] rated current: | 125 A |
| Network type: | AC |
| Earth-leakage sensitivity: | 300 mA |
| Earth-leakage protection time delay: | Instantaneous |
| Earth-leakage protection class: | Type A-SI (Super Immunised) |
| Device location in system: | Outgoer |
|---|---|
| Network frequency: | 50 Hz |
| [Ue] rated operational voltage: | 230...415 V AC 50 Hz |
| Residual current tripping technology: | Voltage independent |
| [Ui] rated insulation voltage: | 500 V AC 50/60 Hz conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947-2 |
| Mounting mode: | Clip-on |
| Mounting support: | 35 mm symmetrical DIN rail |
| Electrical connection to mcb: | By screws |
| 9 mm pitches: | 10 |
| Height: | 95 mm |
| Width: | 198 mm |
| Depth: | 73 mm |
| Product weight: | 0.58 kg |
| Colour: | White |
| Mechanical durability: | 20000 cycles |
| Connections - terminals: | Tunnel type terminals 1...35 mm² flexibleTunnel type terminals 1...50 mm² rigid |
| Wire stripping length: | 15 mm |
| Tightening torque: | 3.5 N.m |
| Product compatibility: | Single terminal |
| Market segment: | Small commercial |
| Standards: | EN 61009 |
|---|---|
| IP degree of protection: | IP20 |
| Pollution degree: | 3 conforming to IEC 60947-2 |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...60 °C |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3606480376580 |
|---|
