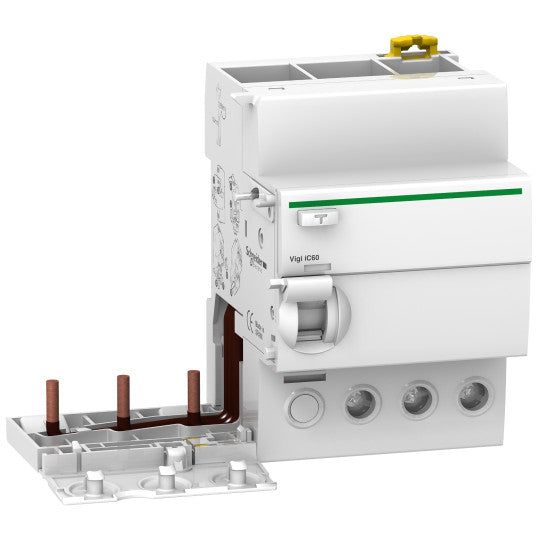

Vigi iC60 - earth leakage add-on block - 3P - 63A - 300mA - AC type - A9V14363
SKU : A9V14363
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Vigi iC60 - earth leakage add-on block - 3P - 63A - 300mA - AC type - A9V14363
DESCRIPTION
| Range: | Acti 9 |
|---|---|
| Range of product: | IC60Reflex iC60 |
| Product or component type: | Add-on residual current devices |
| Device short name: | Vigi iC60 |
| Poles description: | 3P |
| [In] rated current: | 63 A |
| Earth-leakage sensitivity: | 300 mA |
| Earth-leakage protection time delay: | Instantaneous |
| Earth-leakage protection class: | Type AC |
| Network type: | AC |
| Network frequency: | 50/60 Hz |
| [Ue] rated operational voltage: | 400 V AC 50/60 Hz conforming to EN 61009-1400/415 V AC 50/60 Hz conforming to IEC 61009-1 |
| Standards: | IEC 61009-1EN 61009-1 |
| 9 mm pitches: | 7 |
| Device location in system: | Outgoer |
|---|---|
| Residual current tripping technology: | Voltage independent |
| [Ui] rated insulation voltage: | 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947-2 |
| Range compatibility: | Acti 9 iC60Acti 9 Reflex iC60 |
| Product compatibility: | Single terminal |
| Local signalling: | Trip indicator |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Electrical connection to mcb: | By screws |
| Comb busbar and distribution block compatibility: | Bottom: YES |
| Height: | 91 mm |
| Width: | 117 mm |
| Depth: | 73.5 mm |
| Product weight: | 0.21 kg |
| Connections - terminals: | Tunnel type terminal downside for 1 cable(s) 1...35 mm² rigid without cable endTunnel type terminal downside for 1 cable(s) 1...25 mm² flexible without cable endTunnel type terminal downside for 1 cable(s) 1...25 mm² flexible with cable end |
| Wire stripping length: | 14 mm for bottom connection |
| Tightening torque: | 3.5 N.m bottom |
| Compatibility code: | Vigi iC60 |
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
|---|---|
| Pollution degree: | 3 conforming to IEC 60947-2 |
| Electromagnetic compatibility: | 8/20 µs impulse withstand, 250 A conforming to IEC 61009-1 |
| Ambient air temperature for operation: | -5...60 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480374753 |
|---|
