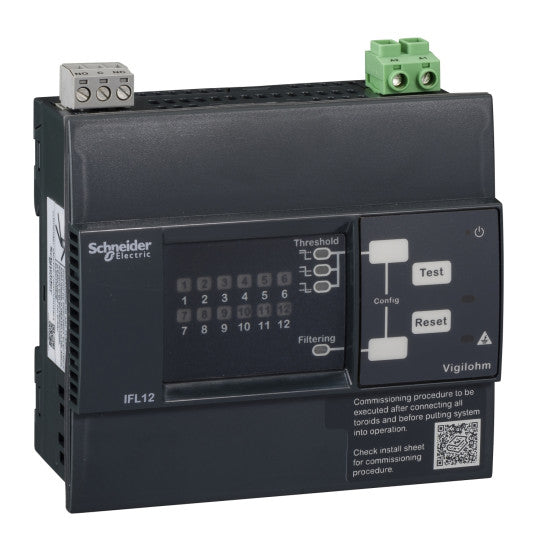

VIGILOHM 12 CHANNEL FAULT LOCATOR - 100-440VAC/DC - IMDIFL12
DESCRIPTION
| Range: | Vigilohm |
|---|---|
| Range of product: | Vigilohm |
| Product name: | Vigilohm IFL |
| Device short name: | IFL12 |
| Product or component type: | Insulation fault locator |
| Device application: | Marine applicationStandard environment application |
| Application: | Medium or low disturbed network |
| Electrical circuit type: | Power circuit |
| Earthing system: | IT |
| Network rated voltage: | 0...1000 V - AC at 45...65 Hz0...1000 V - DC |
|---|---|
| Number of channels: | 12 |
| Insulation shield: | No |
| Local signalling: | Yellow indicator light: insulation faultGreen/red indicator light: product statusGreen indicator light: satisfactory insulationYellow flashing indicator light: transient faultGreen indicator light: configured threshold LEDGreen indicator light: configured filtering LEDYellow steady 1 LED per channel: insulation faultYellow flashing 1 LED per channel: transient fault/toroid disconnected |
| Threshold setting: | Alarm: high, medium, low |
| Type of setting: | Alarm threshold: common to all feeders |
| Response time: | |
| [Us] rated supply voltage: | 100...440 V DC +/- 15 %100...440 V AC 45...65 Hz +/- 15 % |
| Power consumption in VA: | 20 VA |
| Power consumption in W: | 6 W |
| Test function: | ManualAuto test at start and every 5h |
| Signal contacts composition: | 1 C/O standard |
| Signalling circuit voltage: | 250 V - AC at 6 A48 V - DC at 1 A |
| Communication port protocol: | - |
| Mounting mode: | Flush-mountedClip-on |
| Mounting support: | PanelDIN rail |
| Mounting position: | HorizontalVertical |
| Connections - terminals: | Power supply: removable screw terminal block0.2...2.5 mm²Output relay: removable screw terminal block0.2...2.5 mm²Toroids inputs: removable screw terminal block0.2...1.5 mm² |
| Material: | Thermoplastic |
| Overvoltage category: | III |
| Product weight: | 0.5 kg |
| Cut-out dimensions: | 92 x 104 mm |
| Height: | 110 mm |
| Width: | 108 mm |
| Depth: | 59 mm |
| IP degree of protection: | Case: IP20Front face: IP54 |
|---|---|
| Environmental characteristic: | Exposure to damp heat not in service conforming to IEC 60068-2-30Exposure to damp heat in service conforming to IEC 60068-2-56Salt mist conforming to IEC 60068-2-52 |
| Operating altitude: | |
| Pollution degree: | 2 |
| Relative humidity: | 5...92 % |
| Type of installation: | Indoor |
| Standards: | IEC 60364-4-41IEC 61010-1IEC 60364-5-51IEC 61557-9 |
| Product certifications: | DNV-GLCEEACULcULus |
| Ambient air temperature for operation: | -25...55 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606489504830 |
|---|
