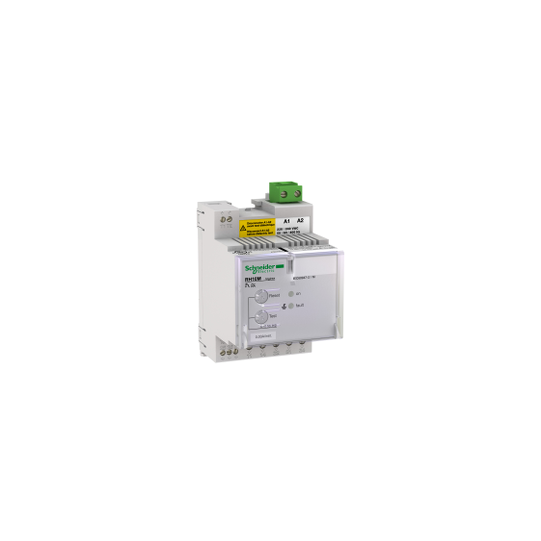

Vigirex RH10M 380-415VAC sensibilité 0,3A instantané - 56145
SKU : 56145
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Vigirex RH10M 380-415VAC sensibilité 0,3A instantané - 56145
DESCRIPTION
| Range: | Vigirex |
|---|---|
| Range of product: | Vigirex |
| Device short name: | RH10M |
| Product or component type: | Residual current protection relay |
| Range compatibility: | Vigirex RH TOA earth leakage current sensorVigirex RH A earth leakage current sensor |
| Relay application: | Residual current protection relay |
| Earthing system: | TTITTN-S |
|---|---|
| [Us] rated supply voltage: | 380...415 V AC at 50/60 Hz |
| Power consumption: | 4 VA |
| Type of measurement: | Earth fault current internal measurement 80...100 % |
| Residual earth-leakage time delay adjustment type: | Instantaneous 0.3 A |
| Test function: | Remote testLocal |
| Monitoring: | Electronics (continuous)Power supply (continuous)Relay/sensor link (continuous) |
| [Ithe] conventional enclosed thermal current: | 8 A |
| Minimum load: | 10 mA at 12 V |
| Product weight: | 0.3 kg |
| Mechanical robustness: | IK protection 2 joules IK07 conforming to EN 50102IP protection IP20 conforming to IEC 60529IP protection IP30 conforming to IEC 60529IP protection IP40 conforming to IEC 60529Vibrations 13.2...100 Hz 0.7 gVibrations 2...13.2 Hz +/- 1 mmFire resistance conforming to IEC 60695-2-1 |
| Earth-leakage protection class: | Class ACClass A si |
| Overvoltage category: | IV |
| Tamperproof of settings: | Protected by sealable cover |
| Mounting support: | DIN rail |
| Height: | 97 mm |
| Width: | 54 mm |
| Depth: | 74 mm |
| 9 mm pitches: | 6 |
| Connections - terminals: | Terminal block auxiliary power supply 0.2...2.5 mm² flexible AWG 24...AWG 12Terminal block auxiliary power supply 0.2...2.5 mm² rigid AWG 24...AWG 12Screw terminal fault 0.2...2.5 mm² flexible AWG 24...AWG 12Screw terminal fault 0.2...4 mm² rigid AWG 24...AWG 12Screw terminal relay test and fault reset 0.14...1 mm² flexible AWG 26...AWG 16Screw terminal relay test and fault reset 0.14...1.5 mm² rigid AWG 26...AWG 16Screw terminal sensor 0.14...1 mm² flexible AWG 26...AWG 16Screw terminal sensor 0.14...1.5 mm² rigid AWG 26...AWG 16Screw terminal voltage presence 0.2...2.5 mm² flexible AWG 24...AWG 12Screw terminal voltage presence 0.2...4 mm² rigid AWG 24...AWG 12Terminal block auxiliary power supply 0.25...2.5 mm² flexible AWG 24...AWG 12Screw terminal fault 0.25...2.5 mm² flexible AWG 24...AWG 12Screw terminal relay test and fault reset 0.25...0.5 mm² flexible AWG 26...AWG 16Screw terminal sensor 0.25...0.5 mm² flexible AWG 26...AWG 16Screw terminal voltage presence 0.25...2.5 mm² flexible AWG 24...AWG 12 |
| Wire stripping length: | Auxiliary power supply |
| Tightening torque: | Auxiliary power supply |
| Ambient air temperature for operation: | -35...70 °C |
|---|---|
| Ambient air temperature for storage: | -55...85 °C |
| Electromagnetic compatibility: | Conducted and radiated emissions |
| Electrical shock protection class: | Class II |
| Warranty period: | 18 months |
| Code EAN: | 3303430561453 |
|---|---|
