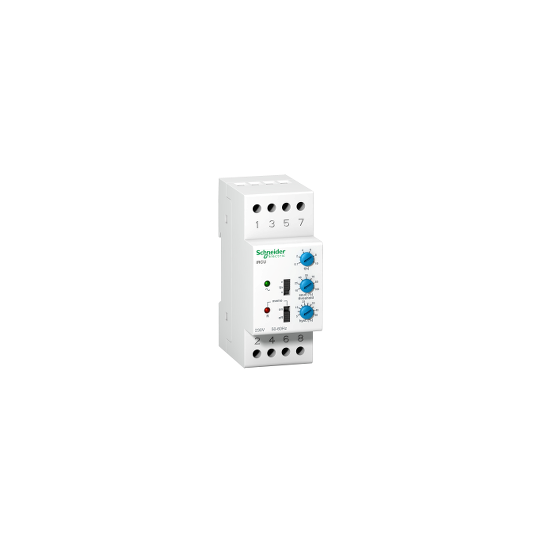

voltage control relay iRCU - 8 A - 230 V 50/60Hz - 1 OC - A9E21182
SKU : A9E21182
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
voltage control relay iRCU - 8 A - 230 V 50/60Hz - 1 OC - A9E21182
DESCRIPTION
| Range: | Acti 9 |
|---|---|
| Product name: | Acti 9 iRC |
| Product or component type: | Control relay |
| Device short name: | IRCU |
| Device application: | Voltage control relay |
| Signal contacts composition: | 1 C/O |
| [Ie] rated operational current: | 8 A at 250 V AC 50/60 Hz (cos Phi = 1) |
|---|---|
| Local signalling: | Reports when the preset threshold is reachedRed LED for faultGreen LED for power on |
| Type of setting: | Selected by wiring: measurement rangeSwitch: overvoltageSwitch: undervoltage |
| Tripping threshold: | 10...100 % |
| Analogue input range: | 50...500 V AC10...100 V DC50...500 V DC10...100 V AC |
| Hysteresis: | 5...50 % |
| Time delay range: | 0.1...10 s |
| Accuracy error: | +/- 10 % |
| [Us] rated supply voltage: | 230 V AC at 50/60 Hz |
| Power consumption in VA: | 3 VA |
| Mounting mode: | Fixed |
| Mounting support: | 35 mm symmetrical DIN rail |
| 9 mm pitches: | 4 |
| Height: | 88.1 mm |
| Width: | 36 mm |
| Depth: | 67 mm |
| Product weight: | 0.215 kg |
| Colour: | White |
| Connections - terminals: | Tunnel type terminals6 cable(s) 1.5 mm² rigid |
| Market segment: | Small commercialResidential |
| Compatibility code: | IRCU |
| IP degree of protection: | IP20 |
|---|---|
| Ambient air temperature for operation: | -5...55 °C |
| Ambient air temperature for storage: | -40...80 °C |
| EU RoHS Directive: | CompliantToxic heavy metal free |
| Code EAN: | 3606480377518 |
|---|
