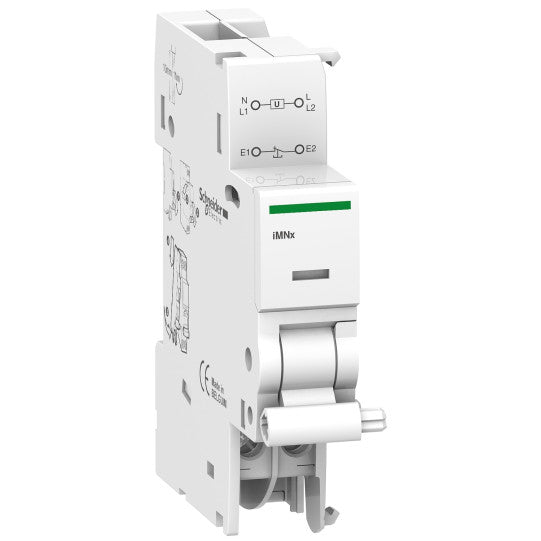

voltage release - iMNx - tripping unit - 380..415 VAC - A9A26971
SKU : A9A26971
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
voltage release - iMNx - tripping unit - 380..415 VAC - A9A26971
DESCRIPTION
| Range: | Acti 9 |
|---|---|
| Product or component type: | Undervoltage release |
| Range of product: | IC60IDPN VigiIIDISW-NA |
| Device short name: | IMNx |
| [Uc] control circuit voltage: | 380...415 V AC 50/60 Hz |
| Control type: | With external feeding |
| 9 mm pitches: | 2 |
| Product compatibility: | ARARCAIC60IIDSingle terminalISW-NAIDPN VigiDouble terminal |
| Range compatibility: | Acti 9 iC65Acti 9 ARAActi 9 iDPN VigiActi 9 iIDActi 9 iSW-NAActi 9 RCAActi 9 iDPN (China version)Acti 9 iC60 double terminals miniature circuit breakerActi 9 iC40 |
|---|---|
| Local signalling: | Action indicator |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Width: | 18 mm |
| Colour: | White |
| Connections - terminals: | Clamp terminal - 1 cable(s) 12 mm² - rigidClamp terminal - 2 cable(s) 2.11 mm² - rigidClamp terminal - 1 cable(s) 10 mm² - flexibleClamp terminal - 2 cable(s) 2.11 mm² - flexible with cable end |
| Tightening torque: | 1 N.m |
| Compatibility code: | IMNx |
| Market segment: | Small commercialResidential |
| Standards: | EN/IEC 60947-5-1 |
|---|---|
| Tropicalisation: | 2 conforming to EN/IEC 60947-5-1 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -25...50 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480088032 |
|---|
