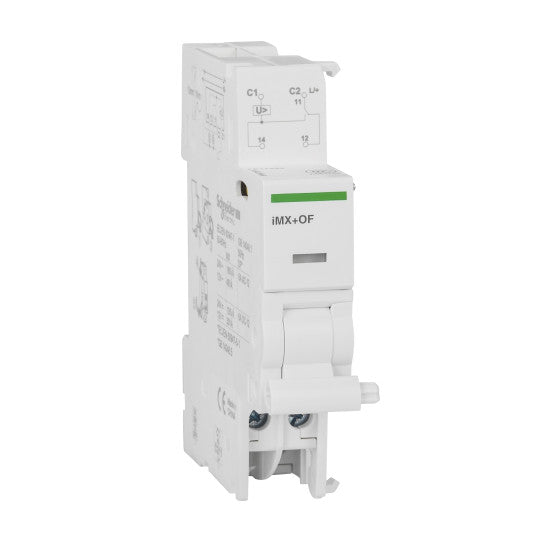

voltage release - iMX+OF - tripping unit - 12..24 VAC - A9A26948
SKU : A9A26948
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
voltage release - iMX+OF - tripping unit - 12..24 VAC - A9A26948
DESCRIPTION
| Range: | Acti 9 |
|---|---|
| Product or component type: | Shunt trip release with OC contact |
| Range of product: | ISW-NAIIDIDPN VigiIC60 |
| Device short name: | IMX+OF |
| Signal contacts composition: | 1 C/O |
| [Ie] rated operational current: | AC-12: 6 A at 12 V AC 50 HzAC-12: 6 A at 24 V AC 50 HzDC-12: 6 A at 12 V DCDC-12: 6 A at 24 V DC |
| [Uc] control circuit voltage: | 12...24 V AC 50/60 Hz12...24 V DC |
| 9 mm pitches: | 2 |
| Product compatibility: | Single terminalIIDIC60Double terminalIDPN VigiRCAARAISW-NA |
| Range compatibility: | Acti 9 iC65Acti 9 ARAActi 9 iDPN VigiActi 9 iIDActi 9 iSW-NAActi 9 RCAActi 9 iDPN (China version)Acti 9 iC60 double terminals miniature circuit breakerActi 9 iC40 |
|---|---|
| Local signalling: | Action indicator |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Width: | 18 mm |
| Colour: | White |
| Connections - terminals: | Clamp terminal - 2 cable(s) 2.5 mm² - flexible with cable endClamp terminal - 1 cable(s) 6 mm² - rigidClamp terminal - 2 cable(s) 2.5 mm² - rigidClamp terminal - 1 cable(s) 4 mm² - flexible |
| Tightening torque: | 1 N.m |
| Compatibility code: | IMX+OF |
| Market segment: | ResidentialSmall commercial |
| Standards: | EN/IEC 60947-5-1 |
|---|---|
| Tropicalisation: | 2 conforming to EN/IEC 60947-5-1 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -25...50 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480087912 |
|---|
