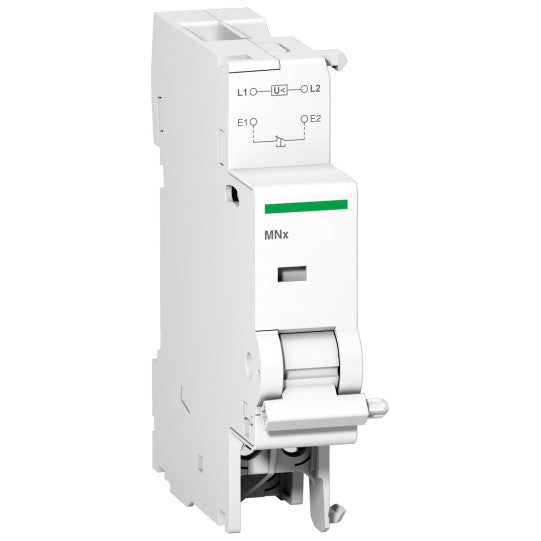

Voltage release MNx 220-240Vac dc - A9N26969
SKU : A9N26969
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Voltage release MNx 220-240Vac dc - A9N26969
DESCRIPTION
| Range: | ClarioActi 9LibrioProdis |
|---|---|
| Product or component type: | Undervoltage release |
| Range of product: | ClarioProDisIDLibrioDPNDPN VigiC120C60 |
| Device short name: | MNx |
| [Uc] control circuit voltage: | 230 V AC 50/60 Hz |
| Control type: | With external feeding |
| 9 mm pitches: | 2 |
| Product compatibility: | C60DT60IDPNDT40IDcDPN VigiC40ITG40ID C40C120 |
| Range compatibility: | Acti 9 iDPNActi 9 C120Acti 9 C40Acti 9 C60H-DCActi 9 C60NA-DCActi 9 C60PV-DCActi 9 DPN VigiActi 9 DT40Acti 9 DT60Acti 9 ID C40Acti 9 IDcActi 9 ITG40Acti 9 IDActi 9 DPN |
|---|---|
| Local signalling: | Action indicator |
| Mounting mode: | Fixed |
| Mounting support: | 35 mm symmetrical DIN rail |
| Height: | 82.5 mm |
| Width: | 18 mm |
| Depth: | 73.5 mm |
| Product weight: | 73 g |
| Colour: | White |
| Connections - terminals: | Screw clamp terminal (bottom) - 2 cable(s) 1.5 mm² - flexibleScrew clamp terminal (bottom) - 2 cable(s) 1.5 mm² - flexible with ferruleScrew clamp terminal (bottom) - 1 cable(s) 0.5...2.5 mm² - rigid |
| Wire stripping length: | 9 mm for bottom connection |
| Tightening torque: | 1 N.m bottom |
| Compatibility code: | MNx |
| Market segment: | Small commercialResidential |
| Standards: | EN/IEC 60947-5-1 |
|---|---|
| Product certifications: | ASTALCIEKEMAASEFA |
| Tropicalisation: | 2 conforming to EN/IEC 60947-5-1 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -25...50 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480383021 |
|---|
